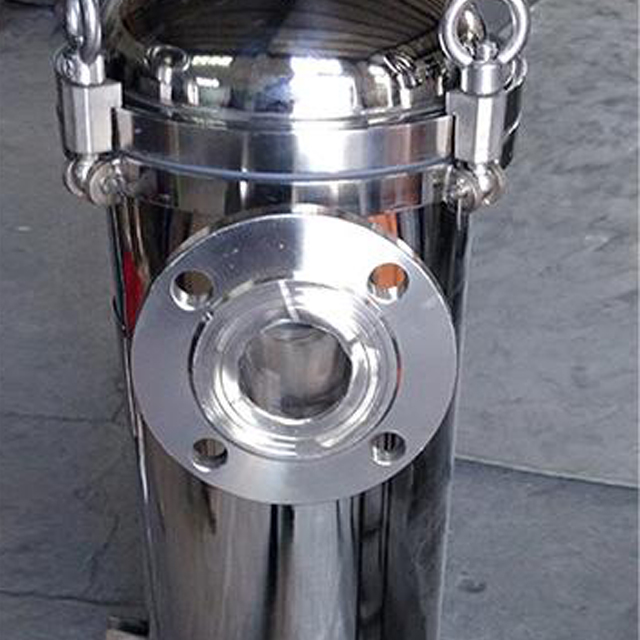

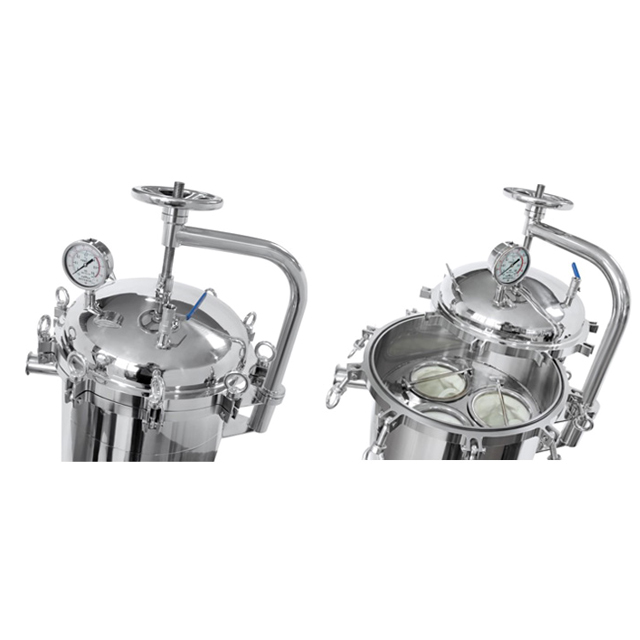

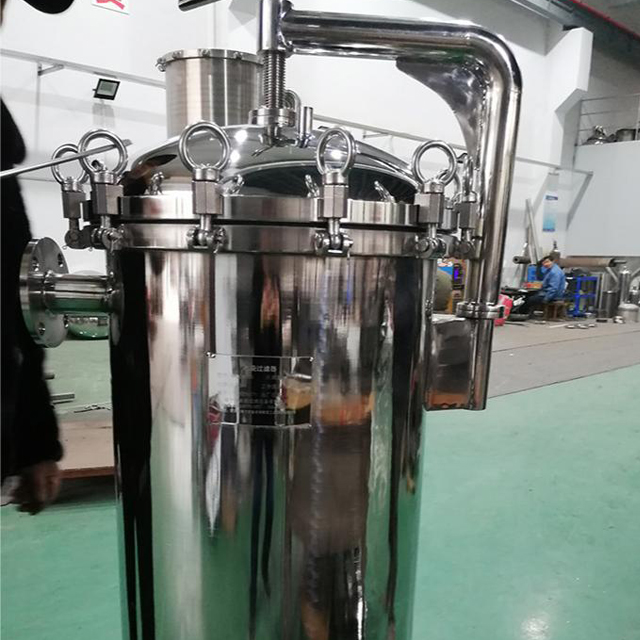

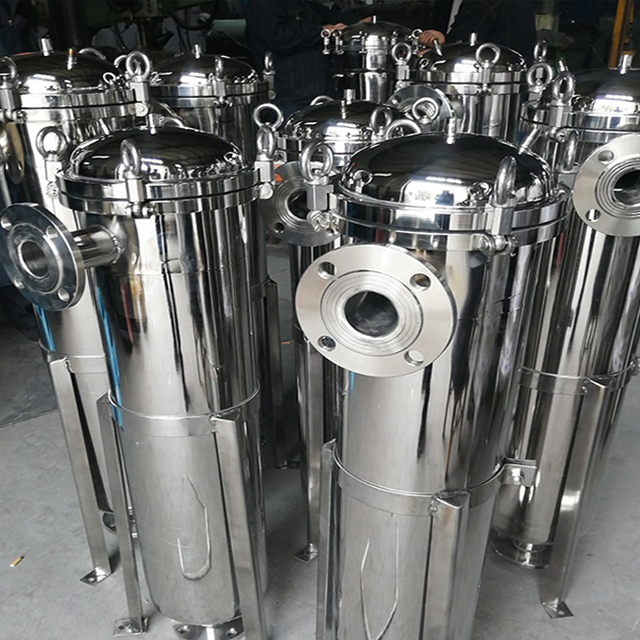

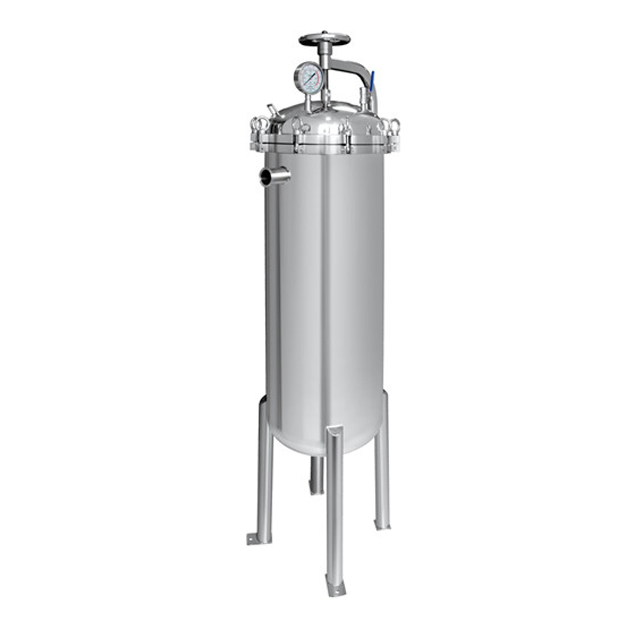

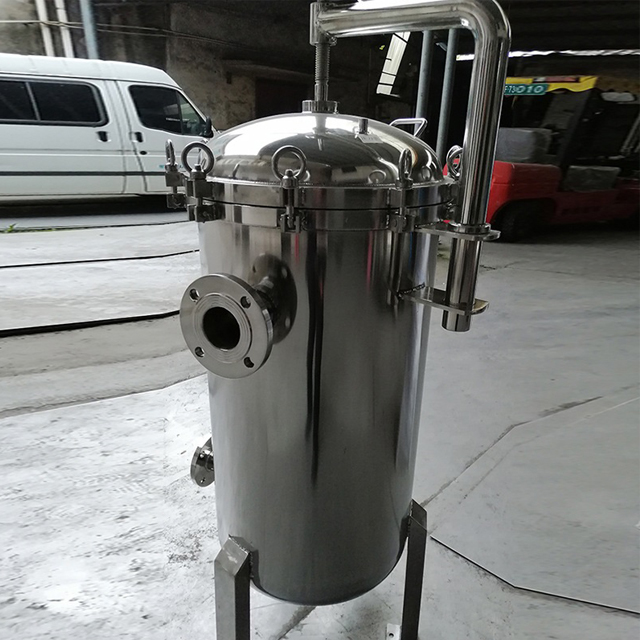

Stainless Steel Multi Bags Filter Housing

Features:

Multi bags filter with multi filter bags is for some coarse filtration and pre-filtration process.
Structure is a economical and reasonable design which can effectively save space of the filter.
Standard quantity is 2 ~ 12 bags, and the maximum production customized to 24 bags can basically meet the requirements of various types of flow.

Applications:

Microbe and solid filtration of alcohol, syrup, beer
Removal of suspended matter, contaminants, particle from water
Filtration of liquid lubricants, coolants and lubricants
Removal of suspended matter, sediment and other impurities from crude oil, natural gas and fuels
Textile, printing and dyeing, paper purification


Availability:



Inquiry Email

Model:
Multi Bags Filter Housing
Brand:
Valuen

Product Overview

Product Parameter

About US

Multi bags filter with multi filter bags is for some coarse filtration and pre-filtration process.

Structure is a economical and reasonable design which can effectively save space of the filter

Standard quantity is 2 ~ 12 bags, and the maximum production customized to 24 bags can basically meet the requirements of various types of flow.

multi bags filter housing

	2P2S	4P2S		6P2S
Bag Quantity (pcs)	2	4		6
Bag Size (mm)	φ180*810	φ180*810		φ180*810
Max Flow (m³/h)	80	160		200
Shell Diameter (mm)	Φ400	Φ500	Φ550	Φ650
Bag Pore Size	0.5, 1, 3, 5, 10, 25, 50, 80, 100, 200μm
Max Operating Pressure	0.6MPa, 1.0MPa
Max Operating Temperature	150℃
Shell Material	304 or 316L Stainless Steel
O-ring Material	EPDM, PTFE, Viton, Silicone
