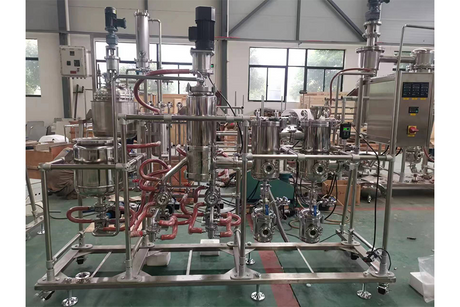

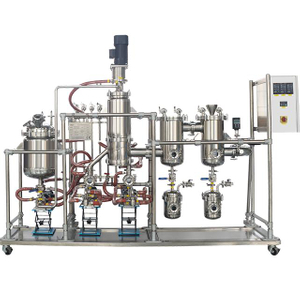

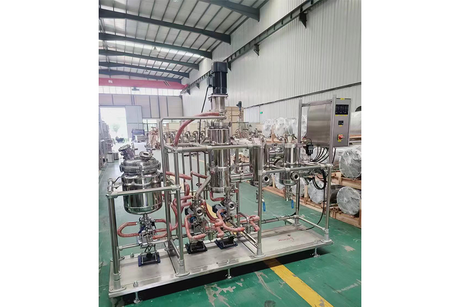

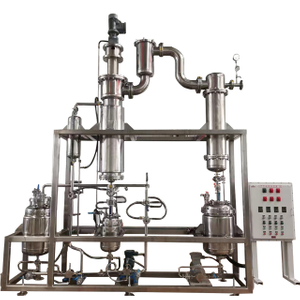

Dual Stage Stainless Steel Wiped (Thin) Film (Molecular) Distillation System

Dual Stage Stainless Steel Wiped (Thin) Film (Molecular) Distillation System

Widely used in vacuum distillation of terpenes, terpenoids chlorophyll, phytosterols; Fat & Wax removal; Concentration of botanical & essential oils deodorization; Essential oil isolation; Molecular distillations of esters; Fatty acids & triglycerides flavor purification, etc.

Combining Thin Film Evaporator with Short Path Evaporator to Purify Material 2 Passes at One Time, to Receive High Purity Distillates
High precision PTFE scraper for forming a complete and even thin film for short residence time and high distillation rates
Non-stop & automatic running by input and output pumps
Sanitary grade stainless steel 316L and 304
Magnetic sealing and viton sealing rings ensuring high vacuum level
Heavy duty stainless steel supporting framework with lockable casters for mobility and stability
High thermal shock resistance and mechanically stable design
Heavy duty stainless steel supporting framework with lockable casters for mobility and stability


Availability:



Inquiry Email

Model:
VWF07S(2S)
Brand:
Valuen

Product Overview

Product Details

Product Parameter

About US

Widely used in vacuum distillation of terpenes, terpenoids chlorophyll, phytosterols; Fat & Wax removal; Concentration of botanical & essential oils deodorization; Essential oil isolation; Molecular distillations of esters; Fatty acids & triglycerides flavor purification, etc.

Combining Thin Film Evaporator with Short Path Evaporator to Purify Material 2 Passes at One Time, to Receive High Purity Distillates
High precision PTFEscraper for forming a complete and even thin film for short residence time and high distillation rates
Non-stop & automatic running by input and output pump
Multiple functions of distillation, evaporation, concentration, sepration, purification, deodorization,etc.

wiped film evaporator

wiped film evaporator 44

Product Details

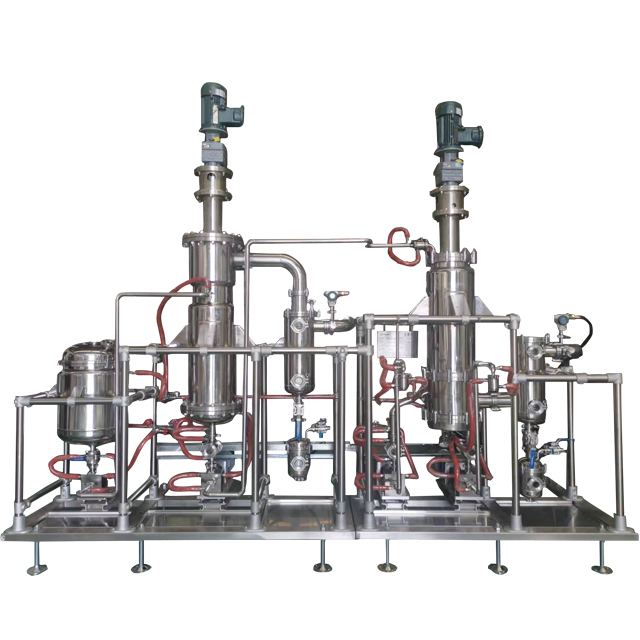

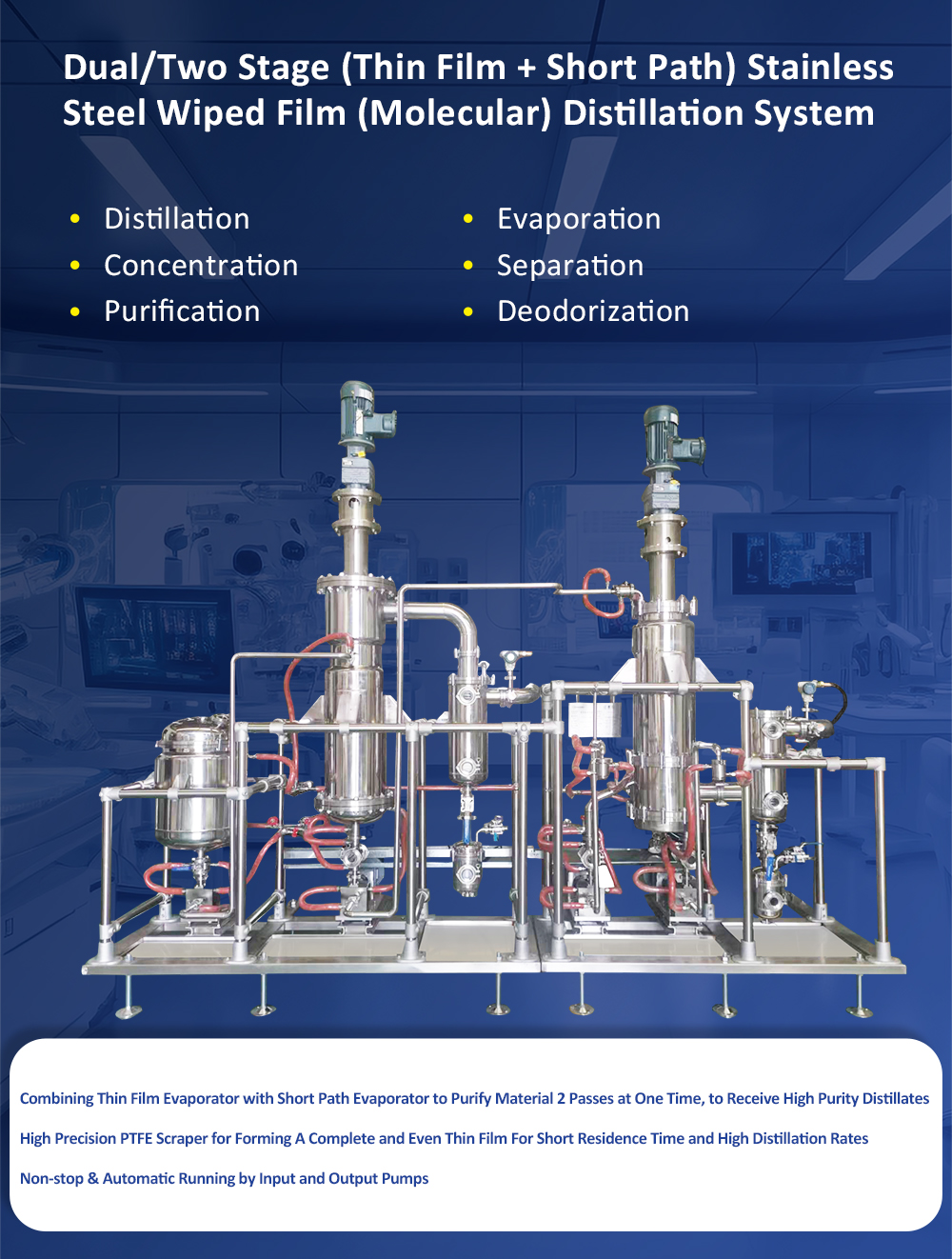

Thin Film & Short Path Distillation

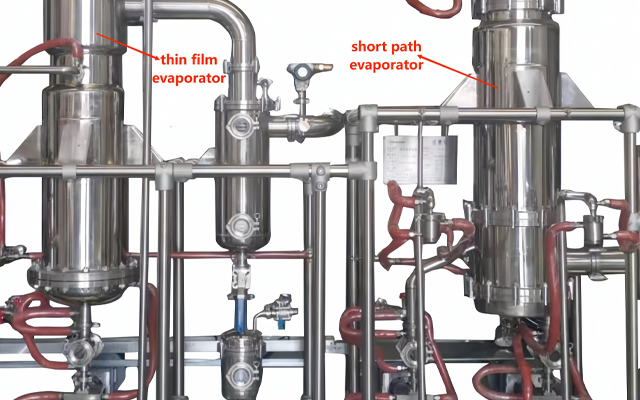

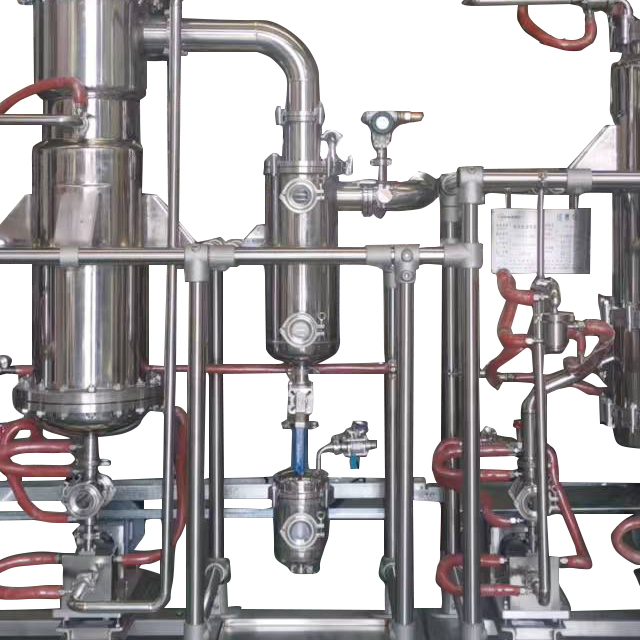

Combining thin film evaporator with short path evaporator to purify material 2 passes at one time, to receive high purity distillates

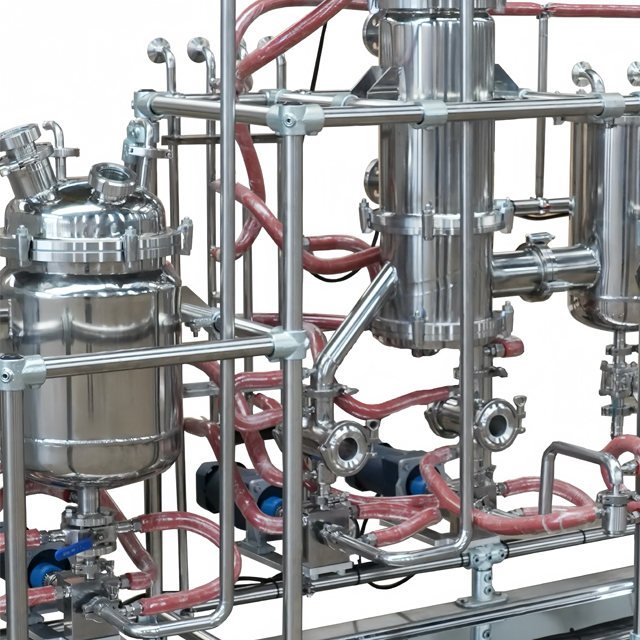

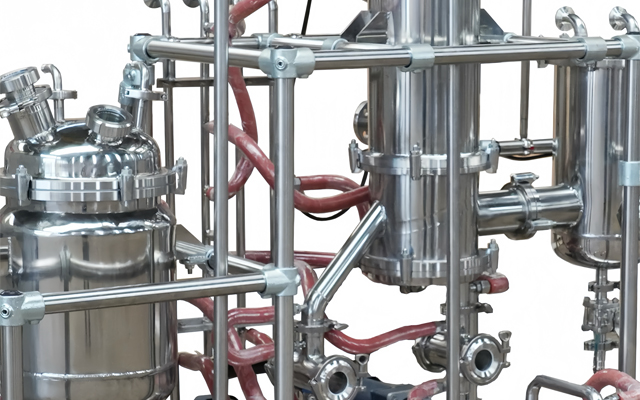

High Quality Stainless Steel

Contact parts of machine are completely made of food grade stainless steel 304/316L
Collection Mode

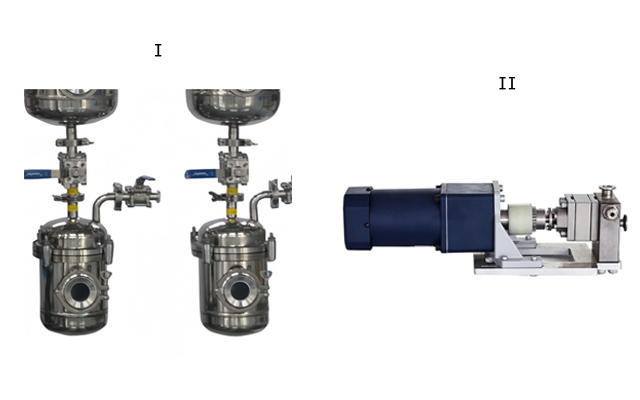

I. Manual collection via collection tank

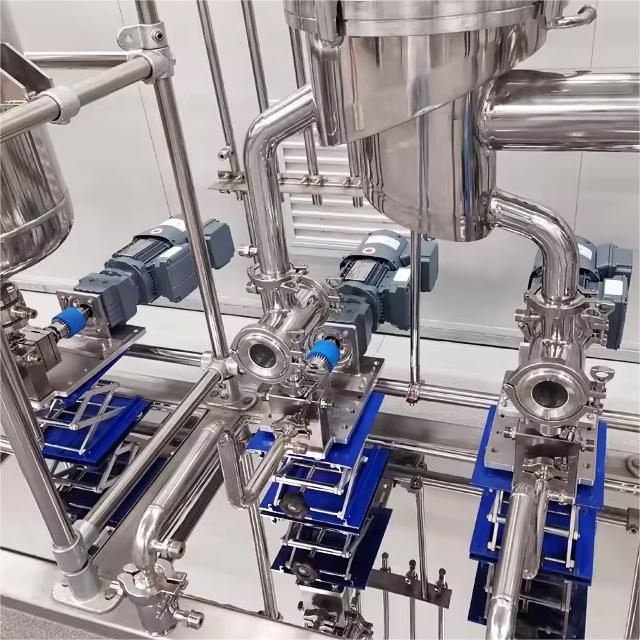

II. Automatic collection via input & output pumps

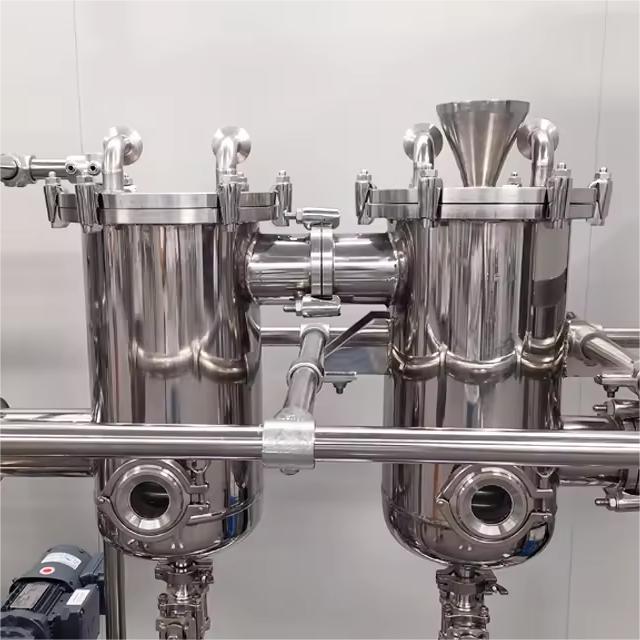

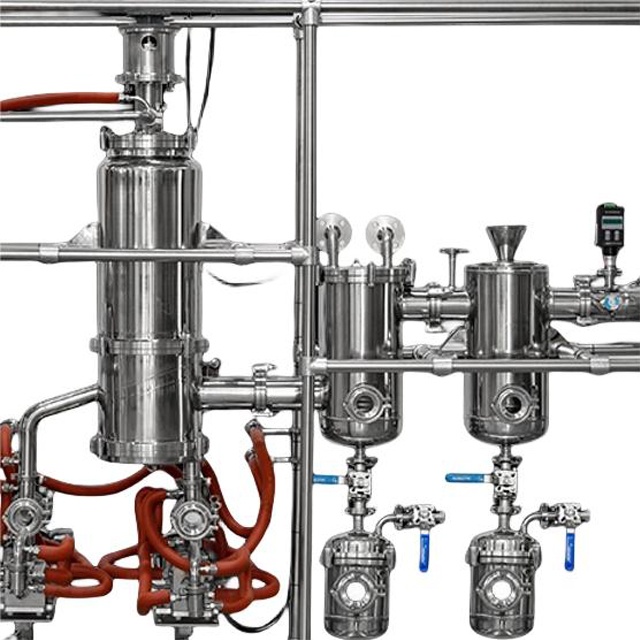

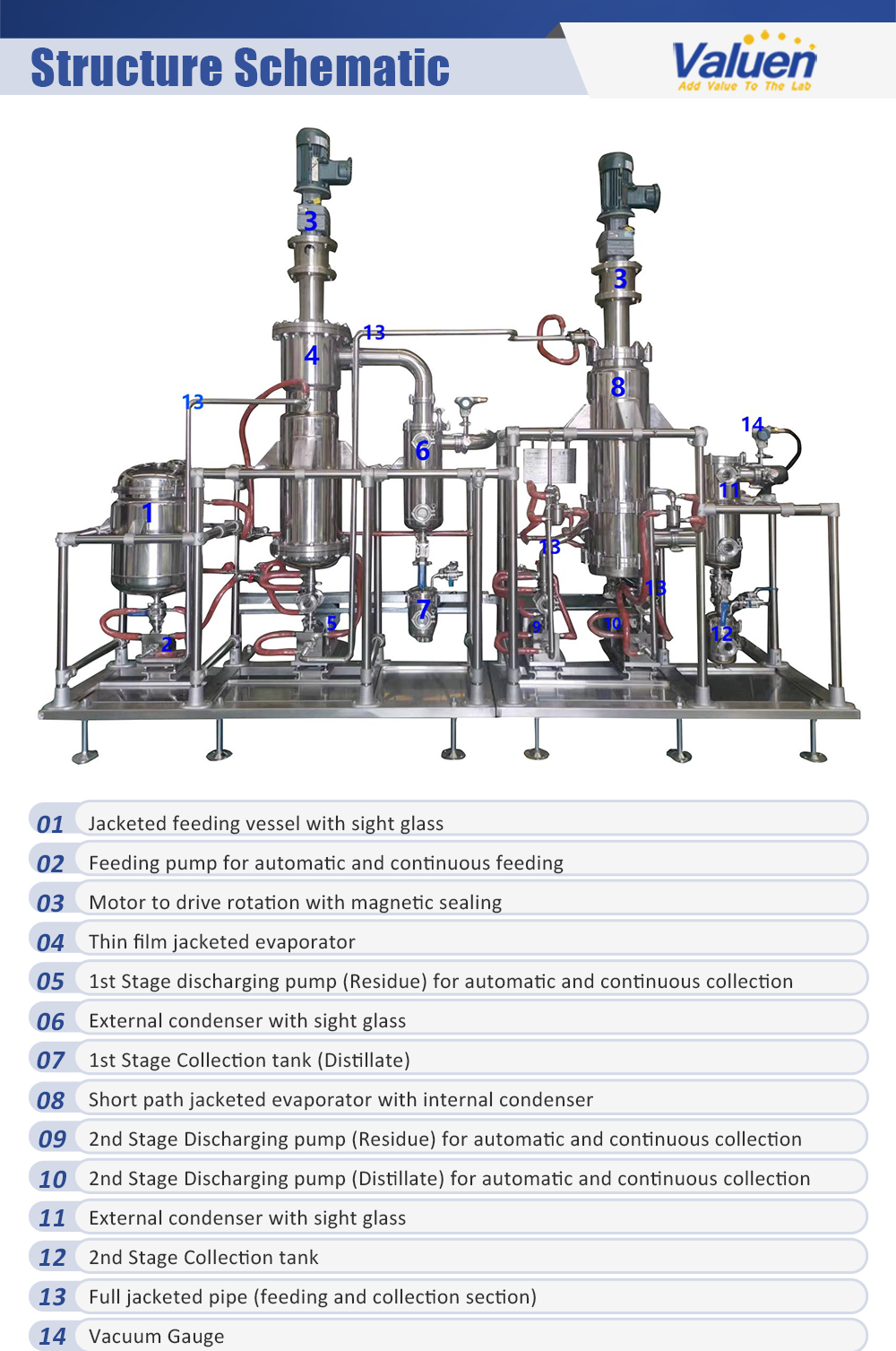

Condensation Area & Complete Structure

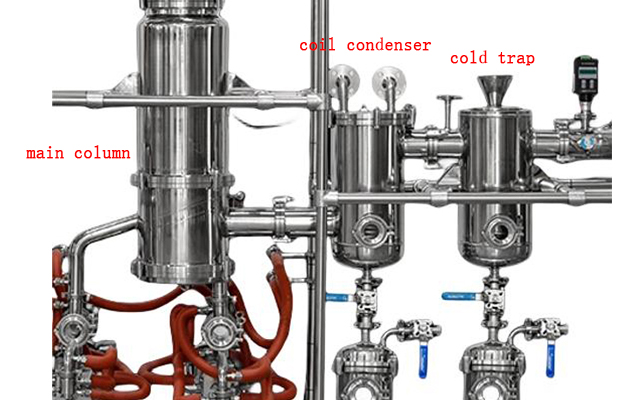

I. Main column + 1 cold trap with coils inside
II. Main column + 1 coils condenser + 1 cold trap with coils inside

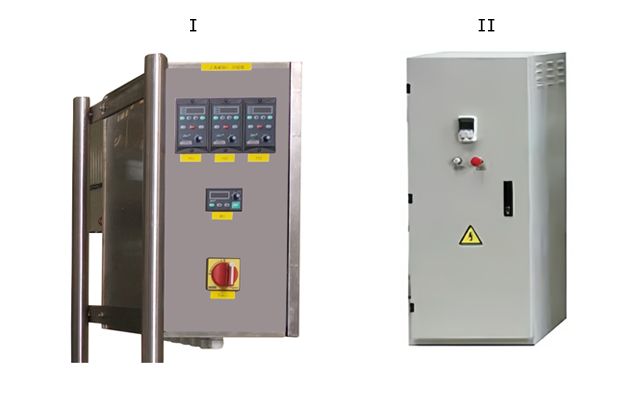

Control Cabinet

I. Digital display of rotation speed, 1 input and 2 output pumps speed
II. Customized: integrate all utilities control on control cabinet
Vacuum Setting

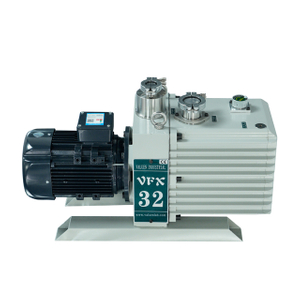

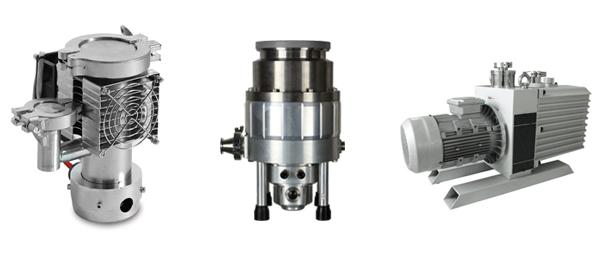

I. Rotary vane vacuum pump: 1 stage or 2 stage pump according to vacuum level request
II. Diffusion pump
III. Turbo molecule pump

Model	VWF05S (2 stage)	VWF07S (2 stage)	VWF08S (2 stage)	VWF12S (2 stage)
Evaporation Surface Area	0.1m²+0.1m²	0.2m²+0.2m²	0.3m²+0.3m²	0.5m²+0.5m²
Column Diameter	125mm (5inch)	184mm (7.2inch)	210mm (8.3inch)	313mm (12.3 inch)
Material	Wetted Parts: Sanitary Grade Stainless Steel 316L; Rack and Other Parts: Sanitary Grade Stainless Steel 304
Structure	Full Jacket Structure (jacketed feeding tank, main column, feeding and collection pipes)
Feeding Tank Volume	15L	20L	30L	50L
Feeding Mode	Auto feeding by input pump
Collection Mode	Auto Collection by Output Pump or Manual Collection by Receiving Tanks
Throughtput	3-6L/H	4-7L/H	5-15L/H	10-25L/H
Cold Trap & Condensers	2 Modules for Options: I: 1 Cold Trap with Coils Inside; II: 1 Coils Condenser and 1 Cold Trap with Coils Inside
Control Cabinet	Rotating speed controller, and speed controllers of both input and output pump (Optional: Integrate all utilities control on control panel )
Stirring Mode	Magnetic Stirring
Wiper Style	PTFE blades or rollers
Motor Power	400W			1.5KW
Power Supply	220V, 50/60Hz, Single Phase

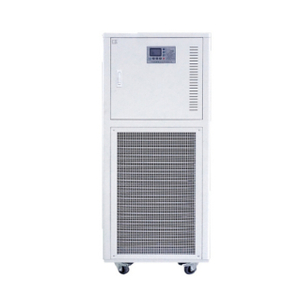

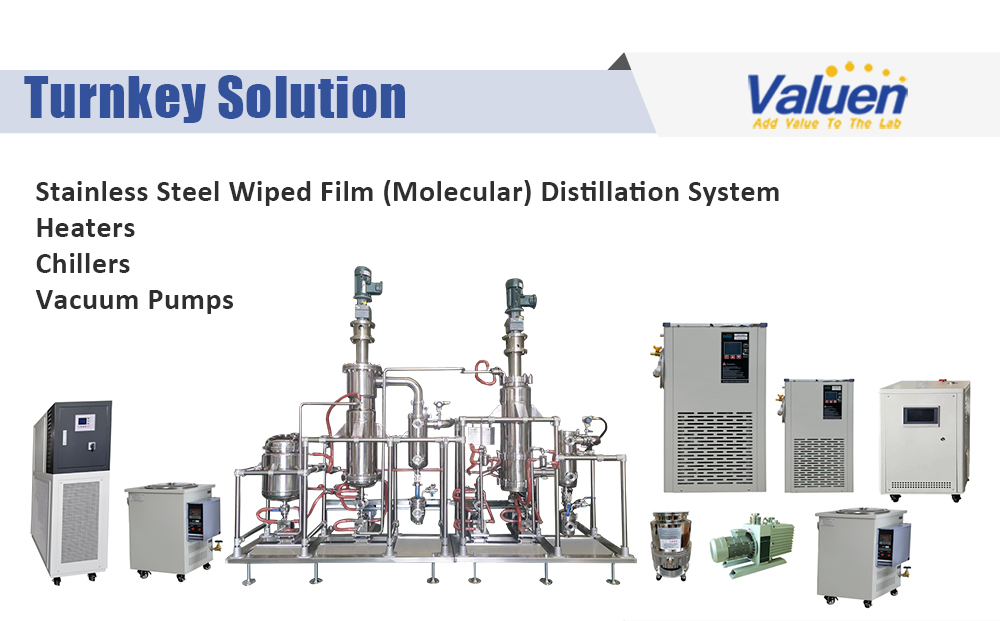

Utilities (Optional)	Heaters for Feeding Tank, Main Column; Chillers for Internal and External Coils Condensers; Vacuum Pump ( 1 or 2 stage)
Sealing	Main Sealing: Magnetic Coupling Sealing; Connection Sealing: Viton O rings & Clamps
Working Temperature	Room Temp. to 300℃
