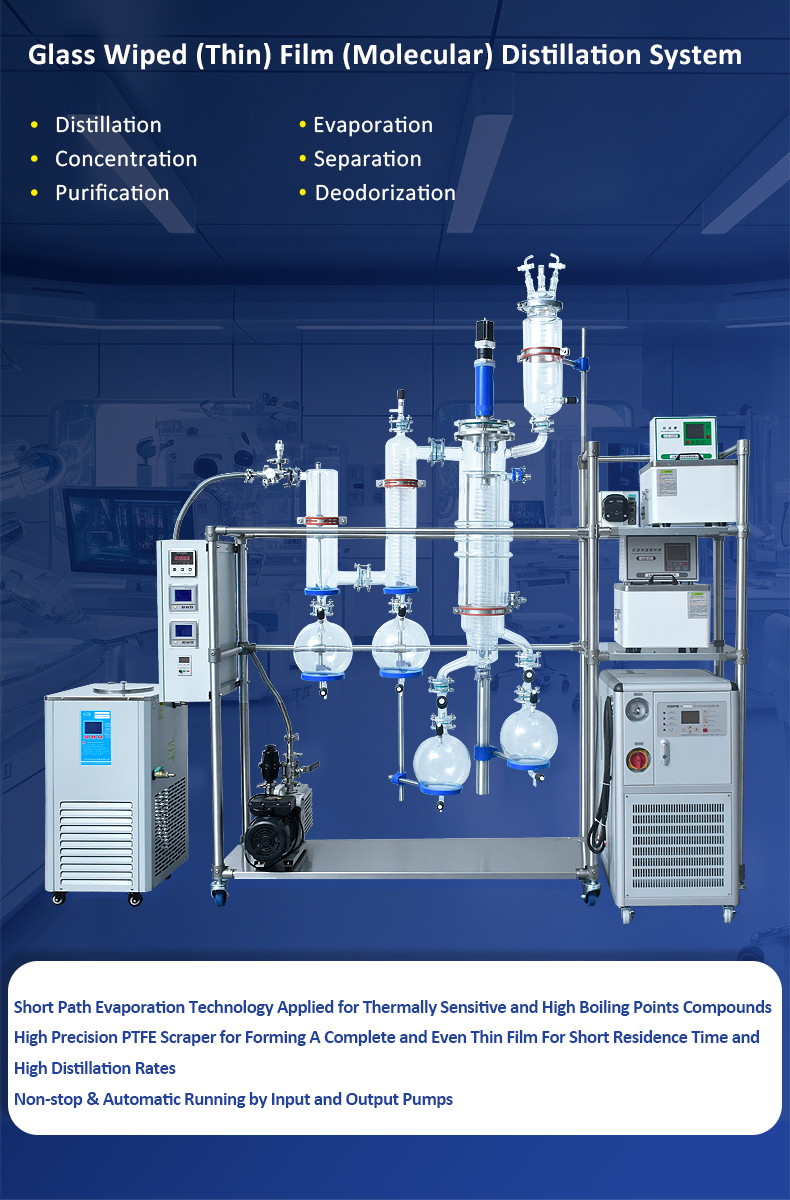

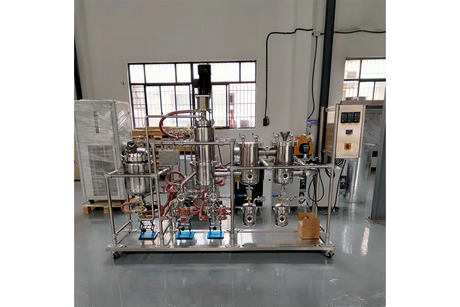

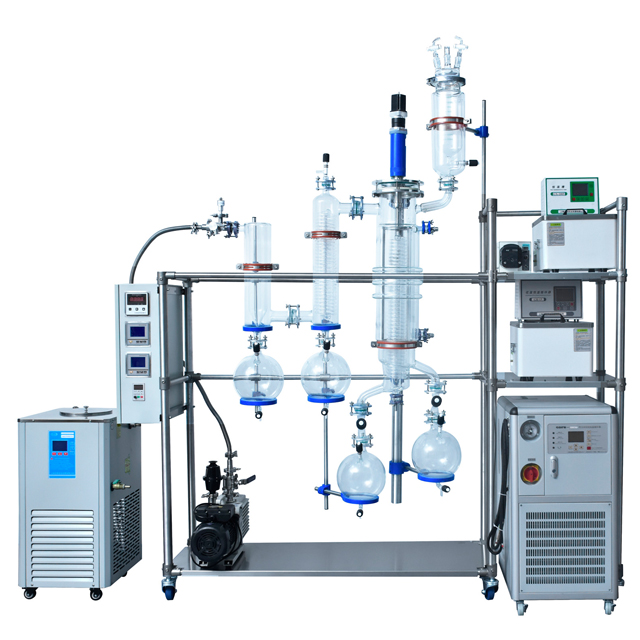

6 Inch Glass Wiped (Thin) Film (Molecular) Distillation System

6 Inch Glass Wiped (Thin) Film (Molecular) Distillation System

Apllication:

Widely used in vacuum distillation of terpenes, terpenoids chlorophyll, phytosterols; Fat & Wax removal; Concentration of botanical & essential oils deodorization; Essential oil isolation; Molecular distillations of esters; Fatty acids & triglycerides flavor purification, etc.

Features:

Short path evaporation technology applied for thermally sensitive and high boiling points compounds
High precision PTFE scraper for forming a complete and even thin film for short residence time and high distillation rates
Non-stop & automatic running by input and output pumps
Sanitary Grade & Heat/Cold/Chemical Resistant High Borosilicate Glass
Magnetic sealing and viton sealing rings ensuring high vacuum level
Heavy duty stainless steel supporting framework with lockable casters for mobility and stability
High thermal shock resistance and mechanically stable design


Availability:



Inquiry Email

Model:
VWF06
Brand:
Valuen

Product Overview

Product Details

Product Parameter

About US

Widely used in vacuum distillation of terpenes, terpenoids chlorophyll, phytosterols; Fat & Wax removal; Concentration of botanical & essential oils deodorization; Essential oil isolation; Molecular distillations of esters; Fatty acids & triglycerides flavor purification, etc.

Short path evaporation technology applied for thermally sensitive and high boiling points compounds
High precision PTFEscraper for forming a complete and even thin film for short residence time and high distillation rates
Non-stop & automatic running by input and output pump
Multiple functions of distillation, evaporation, concentration, sepration, purification, deodorization,etc.

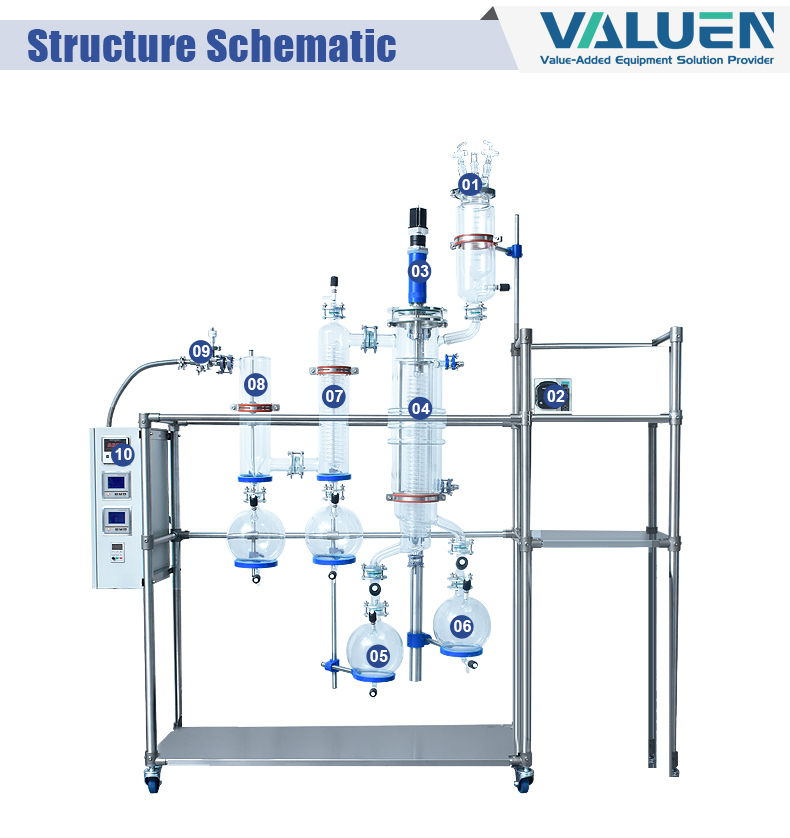

molecular distillation molecular distillation_222

Product Details

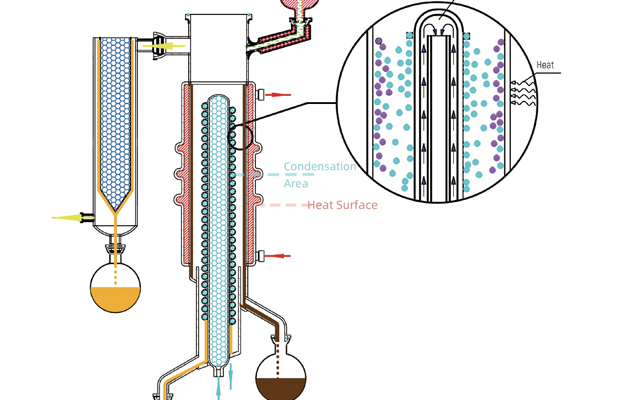

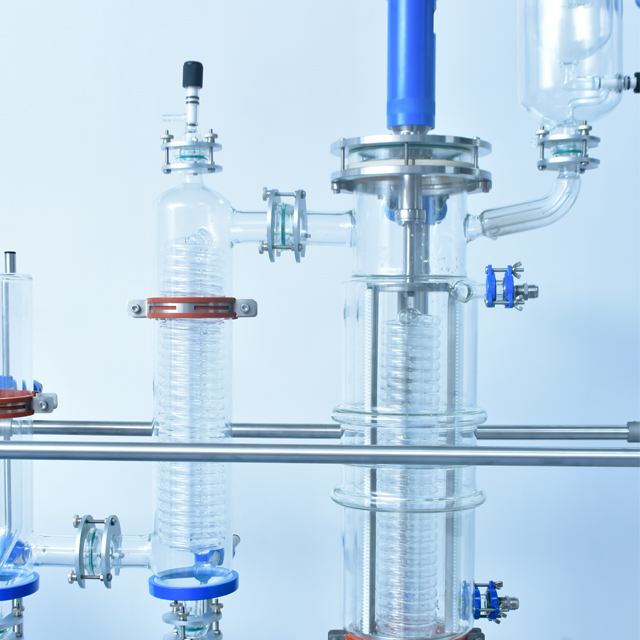

Short Path Distillation

Short path evaporation technology applied for thermally sensitive and high boiling points compounds
High Quality Glass

Sanitary grade & heat/cold/chemical resistant high borosilicate glass

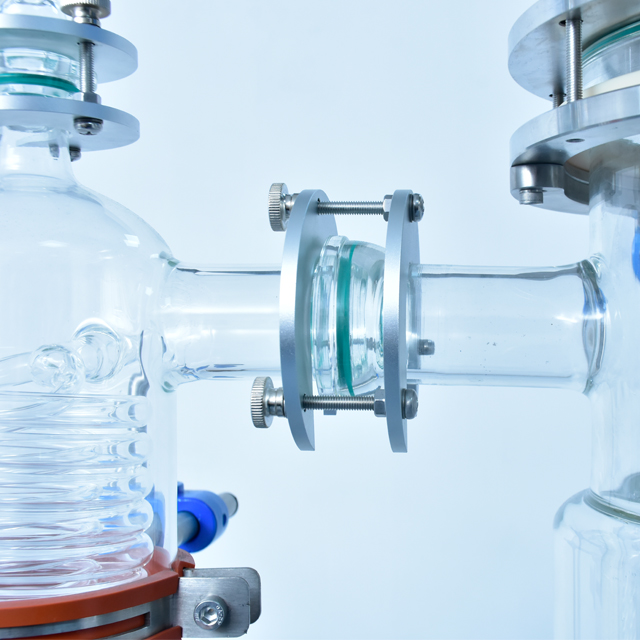

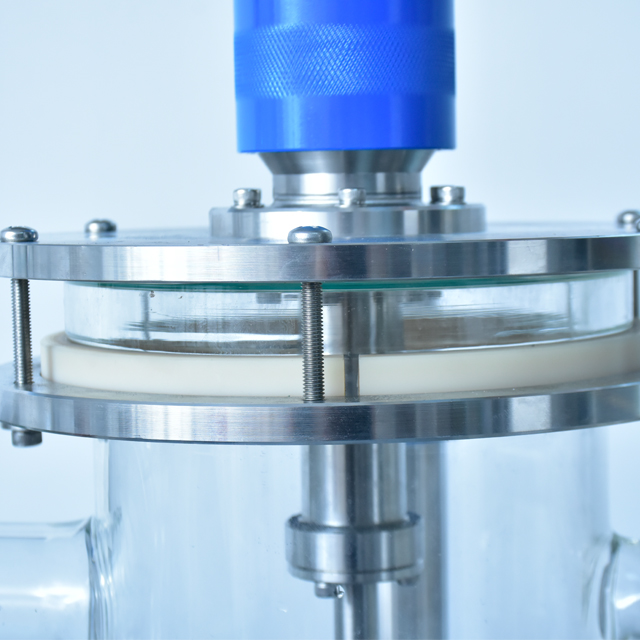

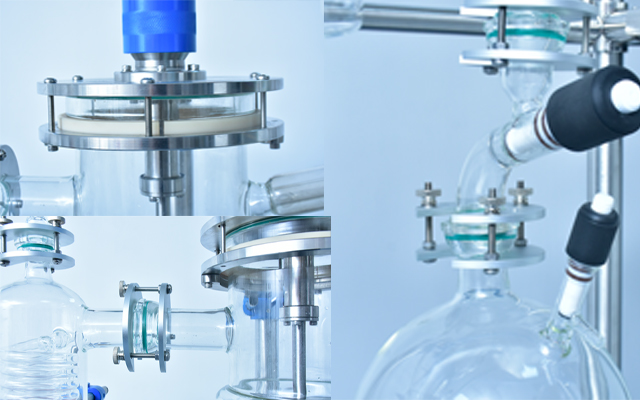

Sealing Parts

Magnetic sealing and viton sealing rings ensuring high vacuum level (Optional: PTFE rings)

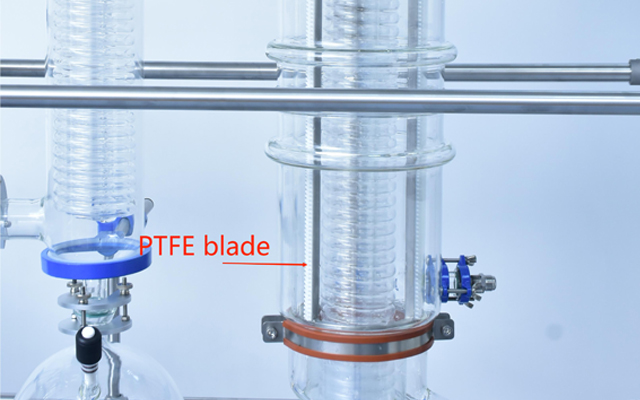

PTFE Blades

High precision PTFE blades for forming a complete and even thin film for short residence time and high distillation rates

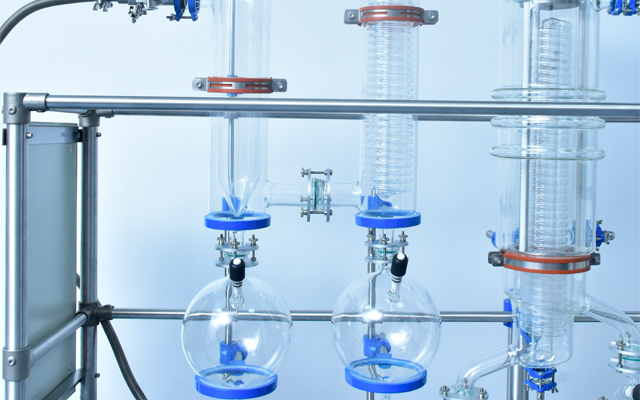

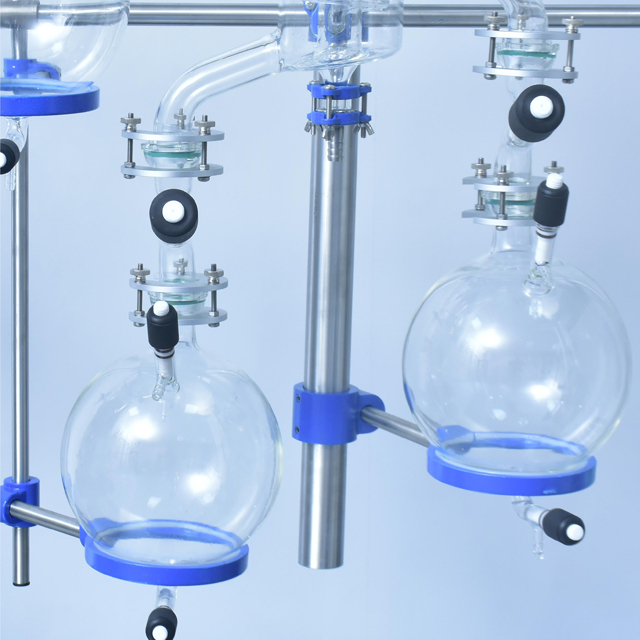

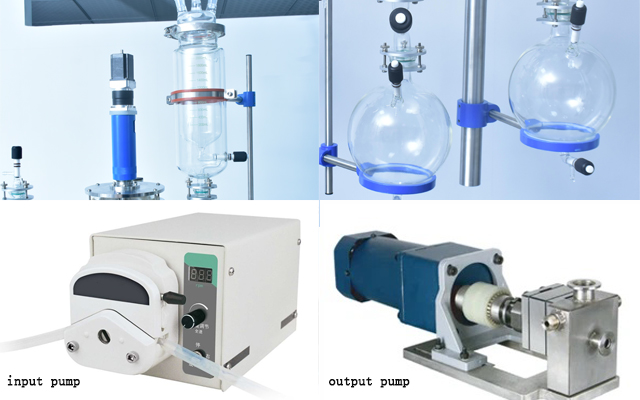

Feeding & Collection Mode

I.Manual feeding or discharging via tank
II.Automatic feeding or discharging via input & output pumps

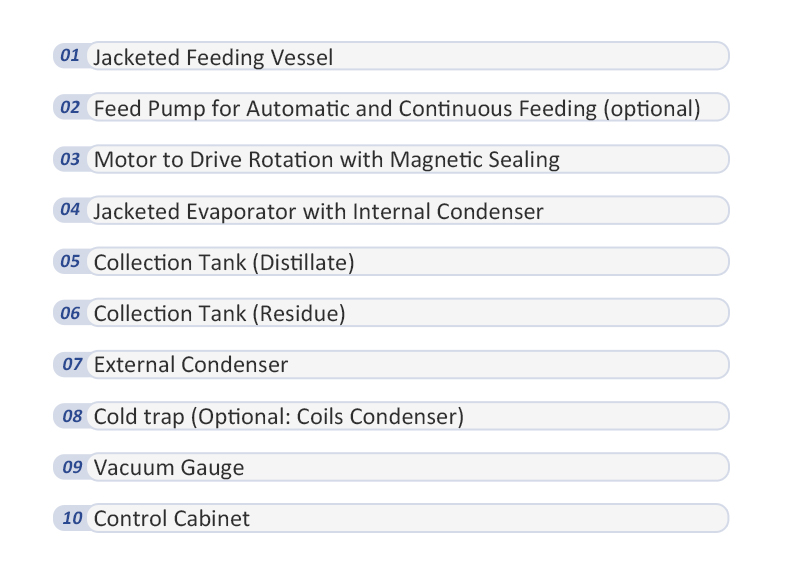

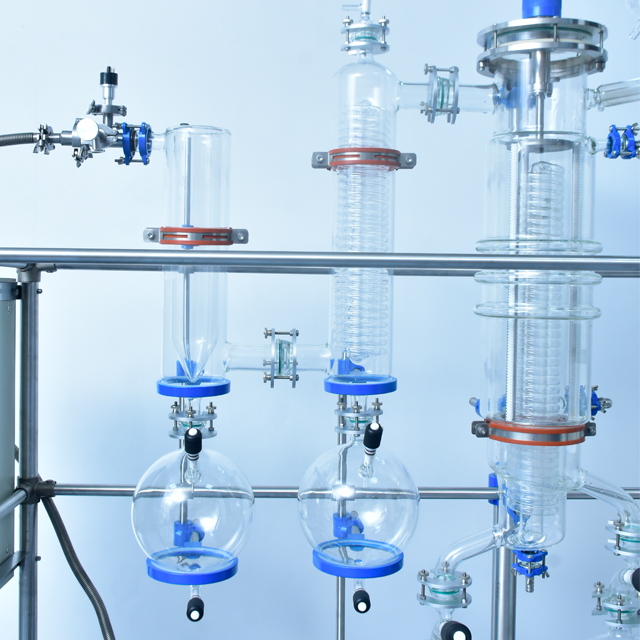

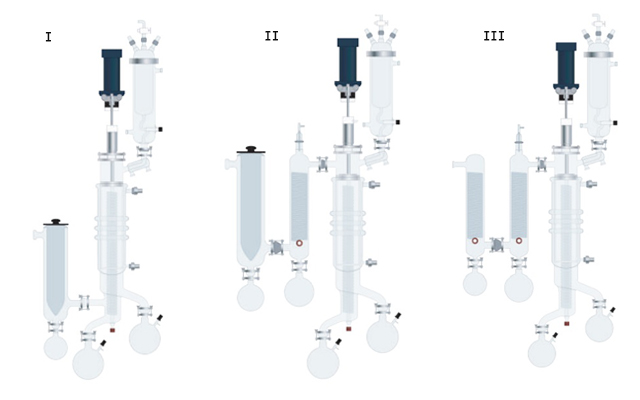

Condensation Area and Complete Structure

I.Main column + 1 cold trap
II.Main column + 1 coils condenser + 1 cold trap
III.Main column + 2 coils condenser

Model	VWF02G	VWF03G	VWF06G
Evaporation Surface Area	0.06㎡	0.1㎡	0.25㎡
Column Diameter	60mm (2.4inch)	80mm (3.2inch)	150mm (6 inch)
Feeding Flask Volume	1L	1.5L	2L
Feed Rate	0.5-3.5L/H	1-5L/H	2-10L/h
Feeding Mode	Manual Feeding via feeding valve or Auto Feeding by input pump
Throughput	0.5-1.75L/H	1-2.5L/H	2-5L/H
Distillate Receiving Flask Volume	1L	1L	5L
Residue Receiving Flask Volume	1L	1L	5L
Discharging Mode	Manual Discharging or Auto Discharging by output pumps
Cold Trap & Condensers	3 Modules for Options: I: 1 Cold Trap; II: 1 Coils Condenser and 1 Cold Trap; III: 2 Coils Condensers
Control Cabinet	Rotating speed controller, Vacuum meter, Temperature controller of heating tape (Optional: Integrate all utilities control on control panel )
Stirring Mode	Magnetic Stirring
Rotating Speed	0-500RPM
Wiper Style	PTFE blades or rollers
Motor Power	120W		200W
Power Supply	220V, 50/60Hz, Single Phase

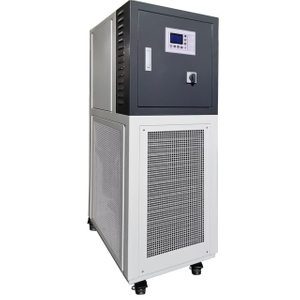

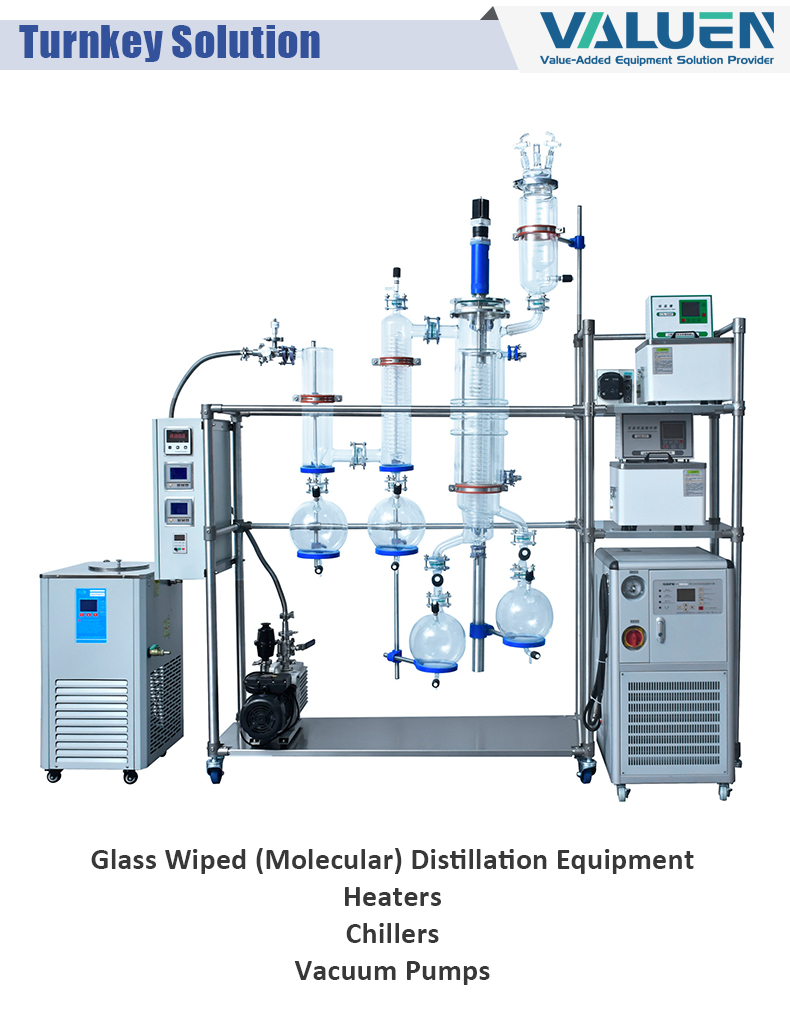

Utilities (Optional)	Heaters for feeding tank, Main Column; Chillers for Internal and External Coils Condensers Vacuum Pump (1 or 2 stage)
Sealing	Main Sealing: magnetic coupling sealing; Connection Sealing: Viton O rings &Ball Clamps
Working Temperature	Room Temp. to 250℃
