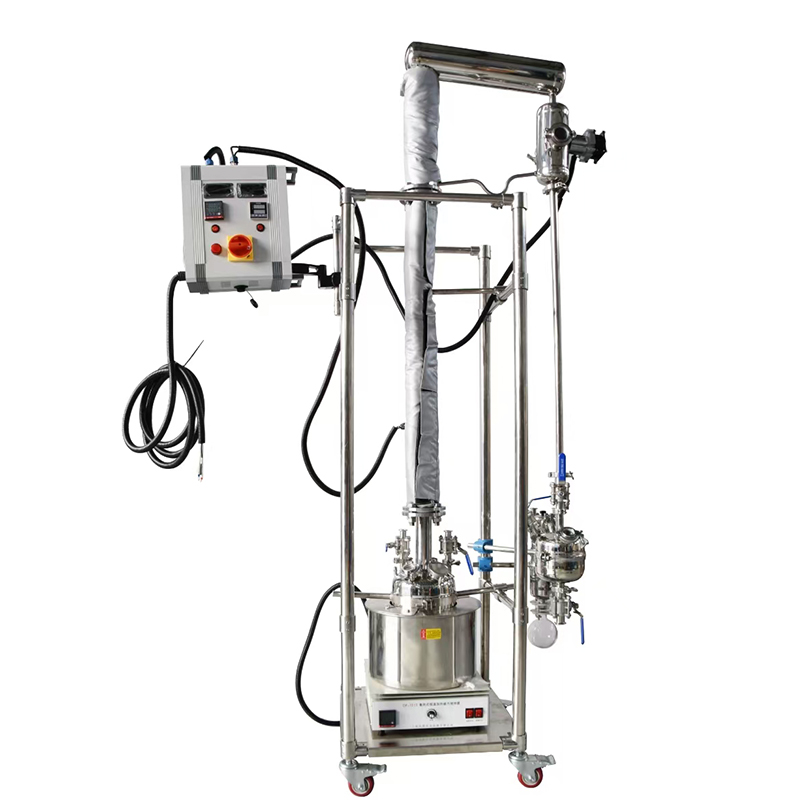

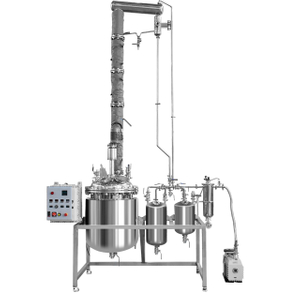

5L Stainless Steel Fractional Distillation(Rectification) Equipment

5L Stainless Steel Fractional Distillation(Rectification) Equipment

Fractional distillation (Rectification)

Best Solution for Separating Components of Very Close Boiling Points
High Purity Distillates Can Be Made Through Repeated Distillation in Distillation Column
Various Fractions Can Be Received By Batch Distillation
Able To Make Distillation Under Both Vacuum And Atmosphere Pressure
Easy Operation Of Complete Separation Process
Easy Configurable for Different Applications
Both Batch And Continuous Distillation Can Be Customized

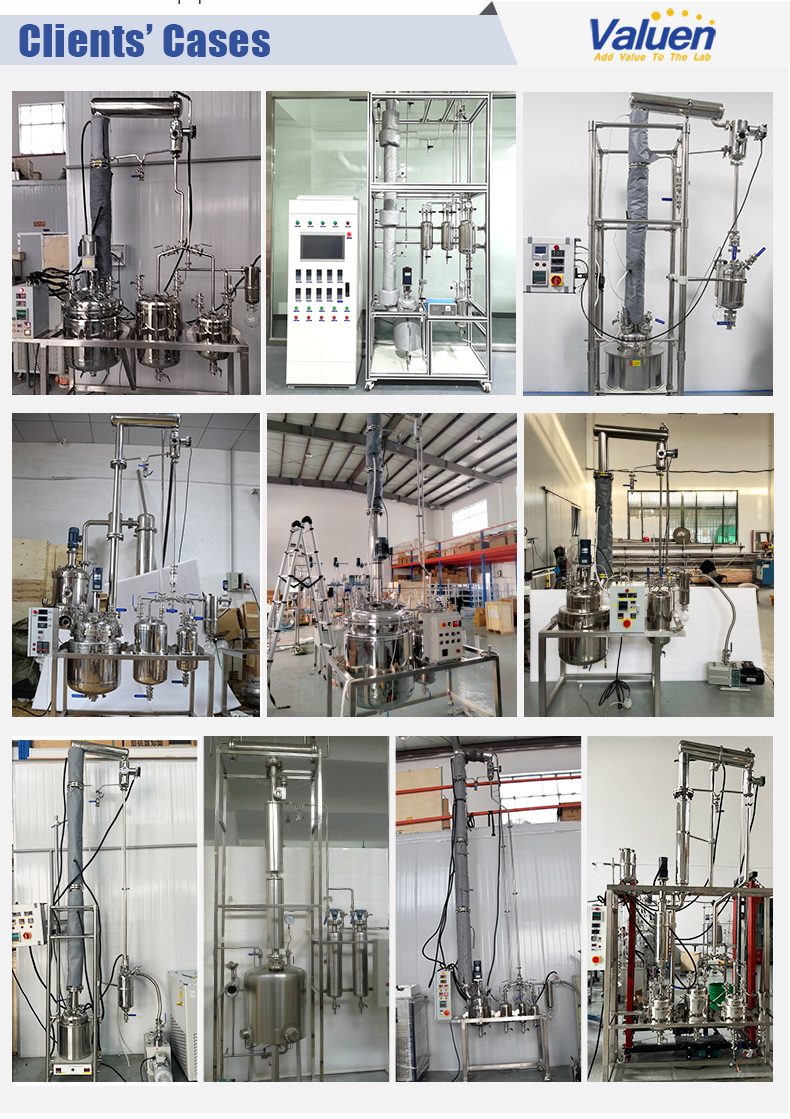

Application Cases:

Chemical Industry: Used for the separation and purification of chemicals such as solvents, acids, bases, and organic compounds.
Pharmaceutical Industry: Utilized for extracting and refining pharmaceutical ingredients to enhance purity and quality.
Food Industry: Applied in the extraction of natural flavors, spices, and edible oils.
Environmental Engineering: Employed in waste liquid treatment and wastewater recovery for environmental protection projects.
Scientific Research: Widely used in universities and research institutions for chemical experiments and studies.


Availability:



Inquiry Email

Model:
VRR05S
Brand:
Valuen

Product Overview

Product Details

Product Parameter

About US

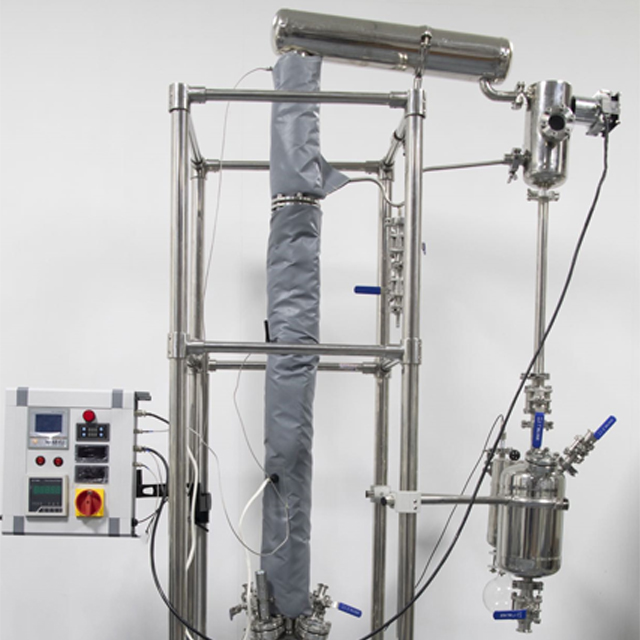

For many cases, the boiling points of the components in the mixture will be sufficiently close that Raoult's law must be taken into consideration. Therefore, fractional distillation must be used in order to separate the components by repeated vaporization-condensation cycles within a packed distillation column. This separation, by successive distillations, is also referred to as rectification.

Best Solution for Separating Components of Very Close Boiling Points
High Purity Distillates Can Be Made Through Repeated Distillation in Distillation Column
Various Fractions Can Be Received By Batch or Successive Distillation

$fractional distillation_01$ $fractional distillation_02$ $fractional distillation_03$ $fractional distillation_04$ $fractional distillation_05$ $fractional distillation_06$ $fractional distillation_07$ $fractional distillation_08$

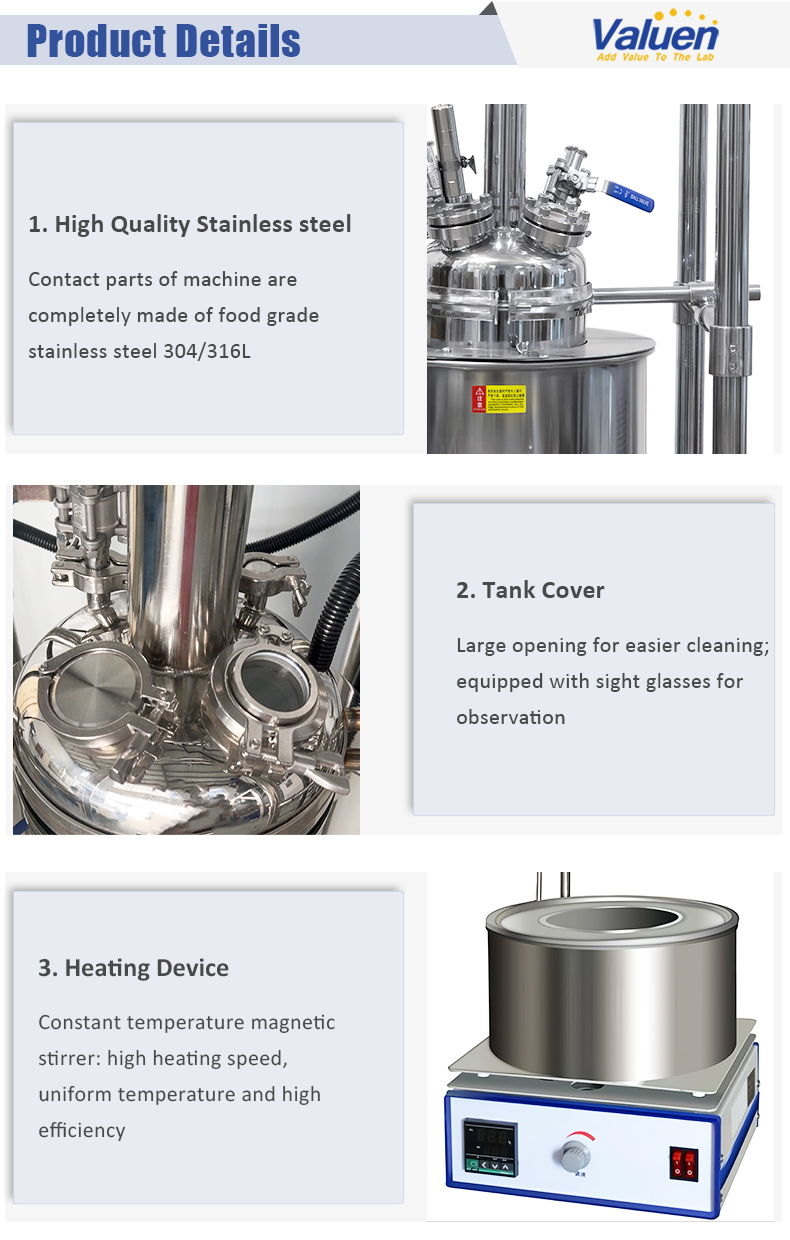

Product Details

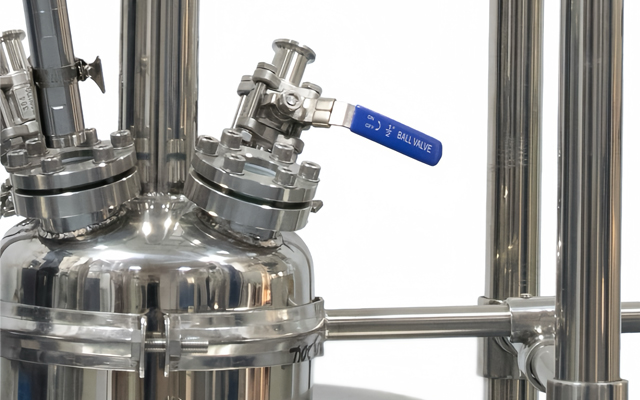

High Quality Stainless Steel

Contact parts of machine are completely made of food grade stainless steel 304/316L

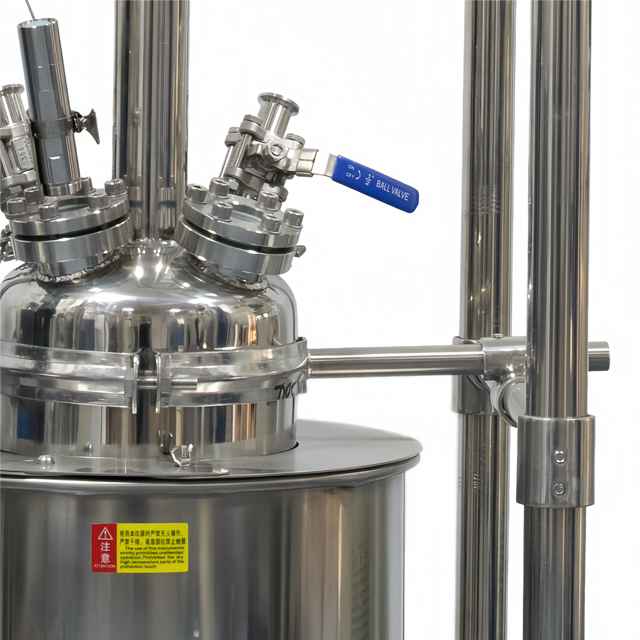

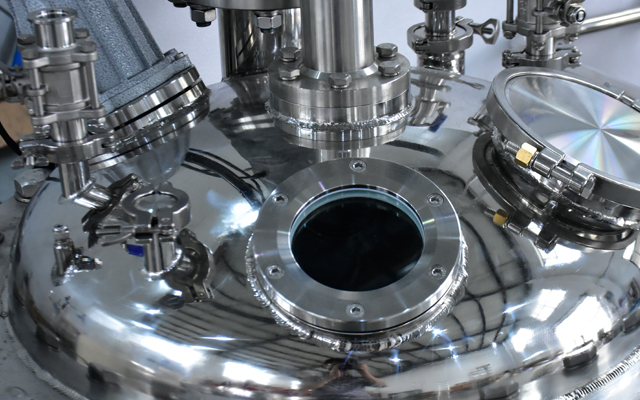

Tank Cover

Large opening for easier cleaning; equipped with sight glasses for observation

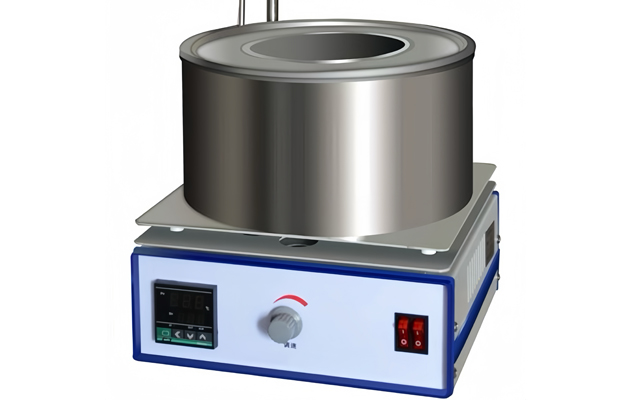

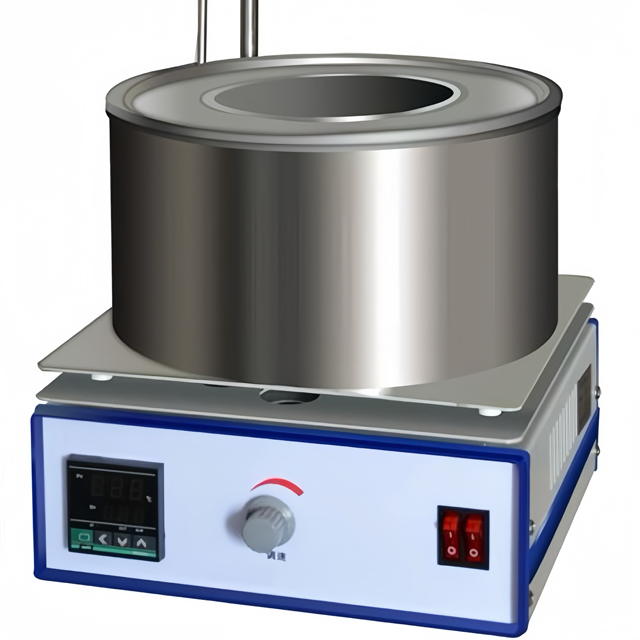

Heating Device

Constant temperature magnetic stirrer: high heating speed, uniform temperature and high efficiency

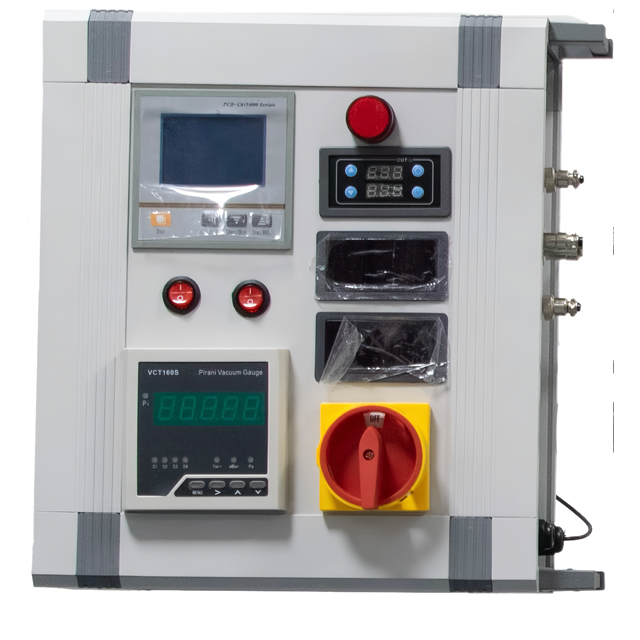

Intelligent Operation

Computer simulation makes the operation of rectification experiment more intelligent; temperature and concentration distribution curves can be obtained

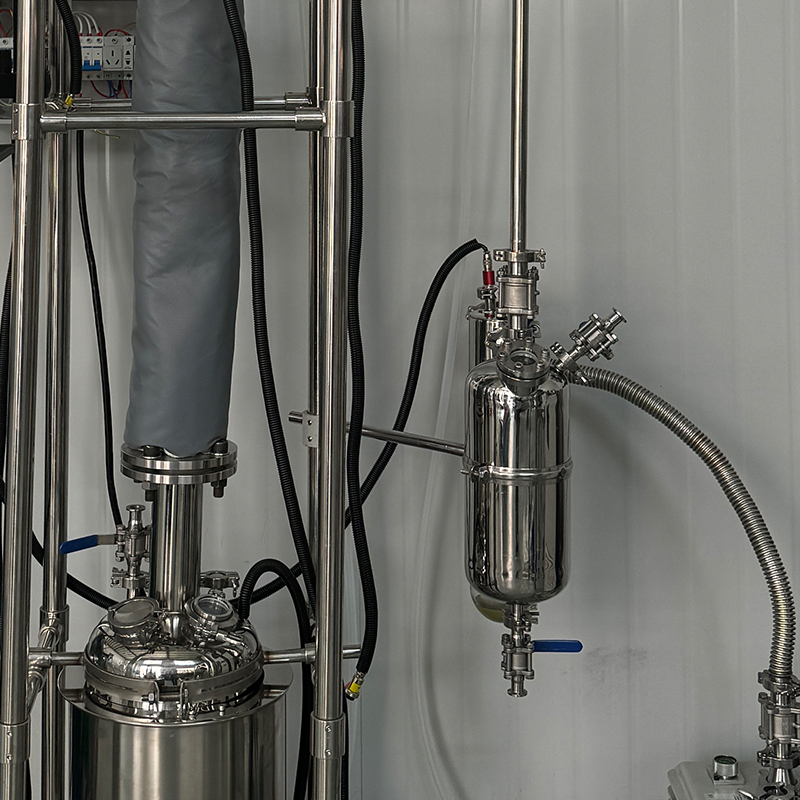

High Separation Efficiency

Through the multi-stage distillation and condensation of the mixture, the difference in evaporation and condensation temperature of each component can be greater, to achieve better separation effect

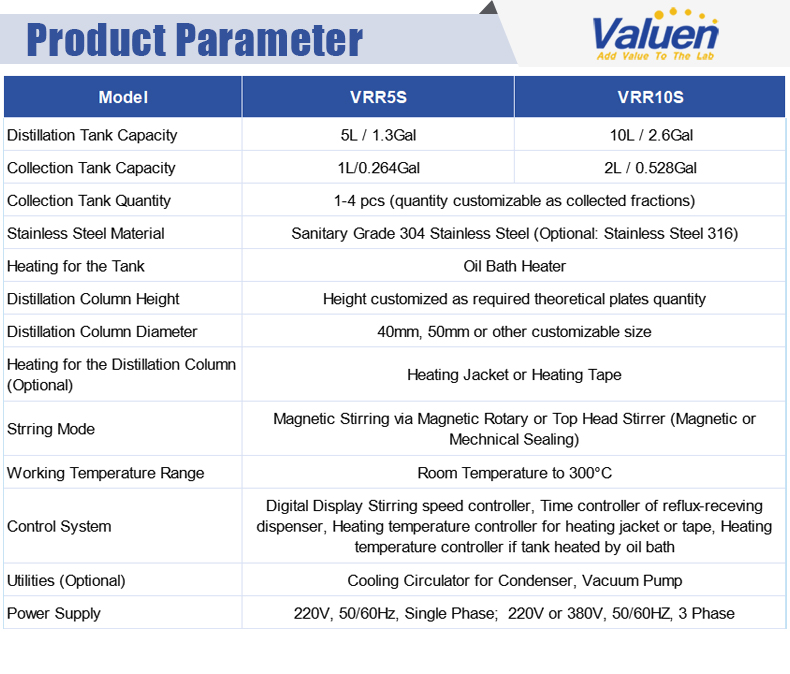

Model	VRR5S	VRR10S
Distillation Tank Capacity	5L / 1.3Gal	10L / 2.6Gal
Collection Tank Capacity	1L/0.264Gal	2L / 0.528Gal
Collection Tank Quantity	1-4 pcs (quantity customizable as collected fractions)
Stainless Steel Material	Sanitary Grade 304 Stainless Steel (Optional: Stainless Steel 316)
Heating for the Tank	Oil Bath Heater
Distillation Column Height	Height customized as required theoretical plates quantity
Distillation Column Diameter	40mm, 50mm or other customizable size
Heating for the Distillation Column (Optional)	Heating Jacket or Heating Tape
Strring Mode	Magnetic Stirring via Magnetic Rotary or Top Head Stirrer (Magnetic or Mechnical Sealing)
Working Temperature Range	Room Temperature to 300°C
Control System	Digital Display Stirring speed controller, Time controller of reflux-receving dispenser, Heating temperature controller for heating jacket or tape, Heating temperature controller if tank heated by oil bath

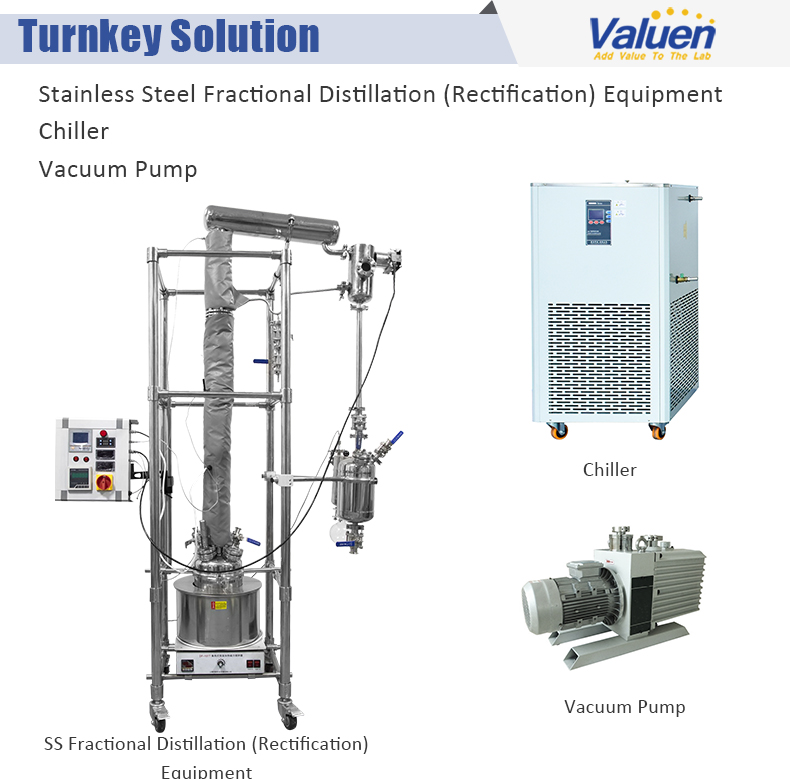

Utilities (Optional)	Cooling Circulator for Condenser, Vacuum Pump
Power Supply	220V, 50/60Hz, Single Phase; 220V or 380V, 50/60HZ, 3 Phase
