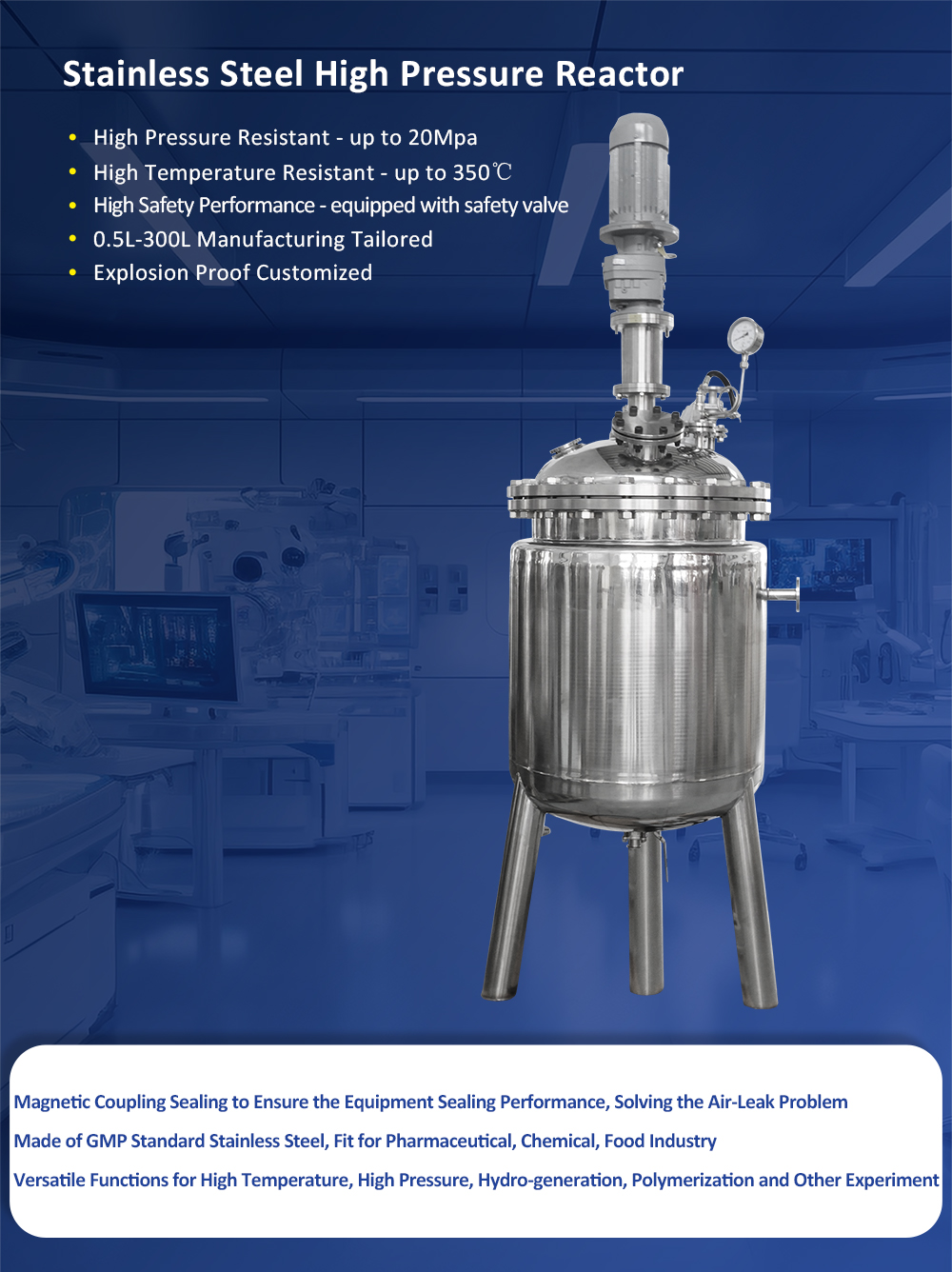

500L Stainless Steel High Pressure Reactor

Magnetic Coupling Sealing to Ensure the Equipment Sealing Performance, Solving the Air-Leak Problem
Made of GMP Standard Stainless Steel, Fit for Pharmaceutical, Chemical, Food Industry
Versatile Functions for High Temperature, High Pressure, Hydro-generation, Polymerization and Other Experiment
High Pressure Resistant - up to 20Mpa
High Temperature Resistant - up to 350℃
High Safety Performance - equipped with safety valve
0.5L-300L Manufacturing Tailored
Explosion Proof Customized

Product Overview

Product Details

Product Parameter

About US

Versatile Functions for High Temperature, High Pressure, Hydro-generation, Polymerization and Other Experiment

high pressure reactor

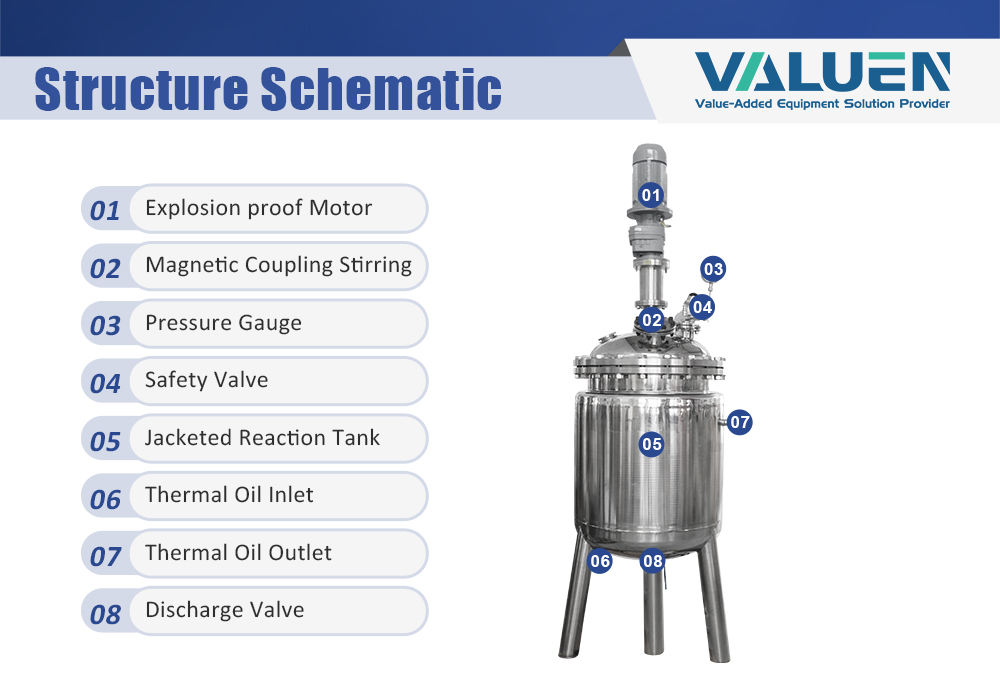

Product Details

High Quality Stainless Steel

The reactor can be made of 1Cr18Ni9Ti, 316L, 1Cr17Ni12MO2Ti, etc. according to the different reaction
Safety Performance & Pressure

Equipped with safety valve to ensure safety; Pressure gauge monitor real-time reaction pressure in the tank
Tank Cover

Sight window makes observation of reacting material easy; Ports and the caliber can be customized
Motor Device

Low noise, stable dynamic, sustainable work; Non-explosion proof or explosion proof can be tailored
Discharge Valve

Easy to use; can achieve continuous receiving

Item	Specification
Reaction Tank Capacity	100ML-50000L
Material	Stainless steel 304, 316L, Titanium, Nickel, Zirconium, or PTFE lining, Hastelloy C-276, C22, cladding plate
Working Pressure Range	-0.1 - 80Mpa
Working Temperature Range	-200℃~700℃
Rotary Speed	0-500rpm
Stirring Motor Power	80W~125KW
Sealing Method	Magnetic seal, mechanical seal
Heating Method	Electric heating, electromagenetic heating, far-infrared heating, heat oil heating, steam heating
