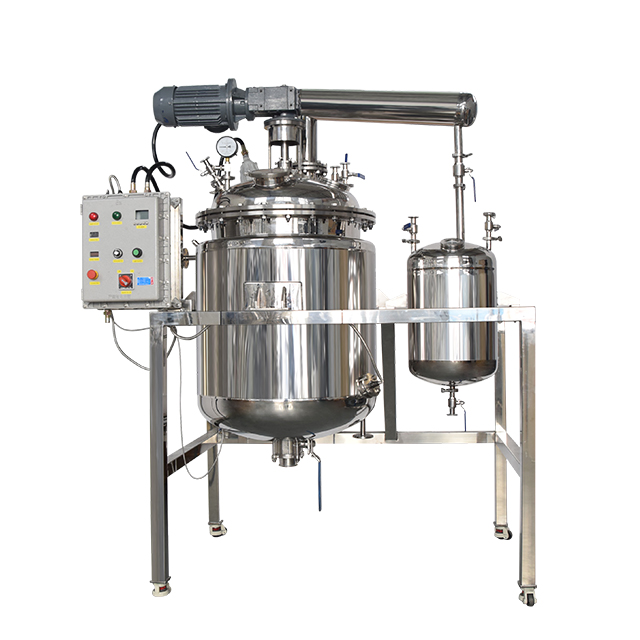

300L Jacketed Stainless Steel Reactor

Each stainless steel jacketed reactor consists of stainless steel reaction vessel, sealing, agitation, temperature probe and digital display, and other accessories like coiled condenser, bottom discharge valve, etc.

Made of Sanitary Grade Durable SS304 &316L and Anti-Corrosive Sealing Parts
Electropolished Internal Tank, Fit For Standard Of Food And Pharmaceutical Industries
Versatile Functions Of Herbal Extraction, Mixing, Synthesis, Concentration, Solvent Recovery and Decarboxylation
Quicky Set-Up And Easy Maintenance
Detachable And Volume-Customizable Condenser And Collection Tanks
Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
Heavy duty stainless steel supporting framework with lockable casters for mobility and stability


Availability:



Inquiry Email

Model:
VJR300S
Brand:
Valuen

Product Overview

Product Details

Product Parameter

About US

300L Jacketed Sanitary Grade Stainless Steel Reactor

Single or Dual Jacketed Sanitary Grade Stainless Steel Reactor (10-500L)

- Versatile functions of herbal extraction, mixing, synthesis, solvent recovery and chemical reaction

- Herbal extraction mixing synthesis concentration solvent recovery decarboxylation reactor

- Sanitary grade durable 316 & 304 stainless steel jacketed stainless steel reactor

- Electropolished internal tank, fit for standard of food and pharmaceutical industries

- Quicky set-up and easy maintenance stainless steel reactor

- Detachable and volume-customizable condenser and collection tanks

- Solvent-resistant PTFE on all sealing components ensures long time durability and operation

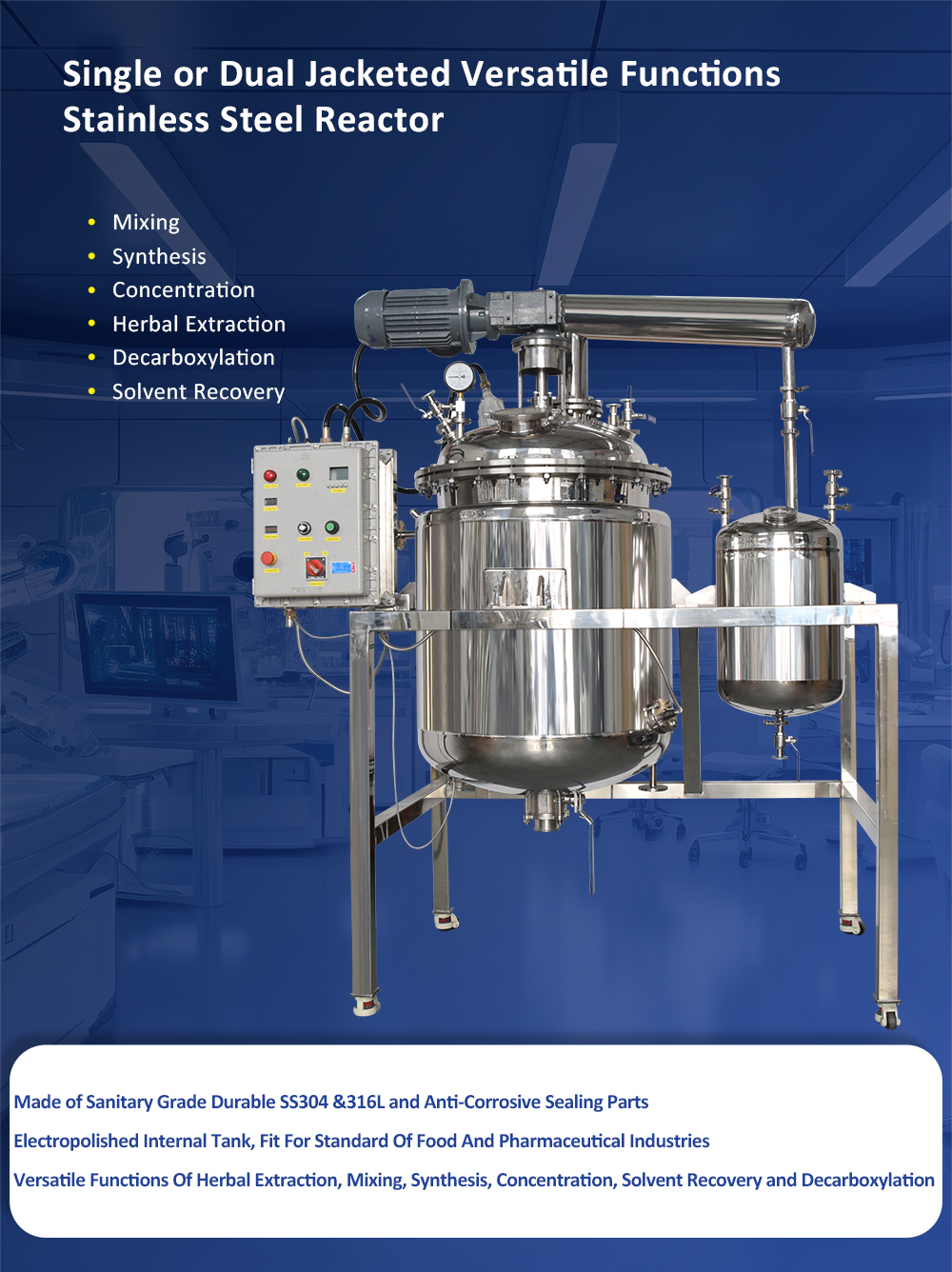

300L不锈钢反应釜详情页(valuen-industrial)_01

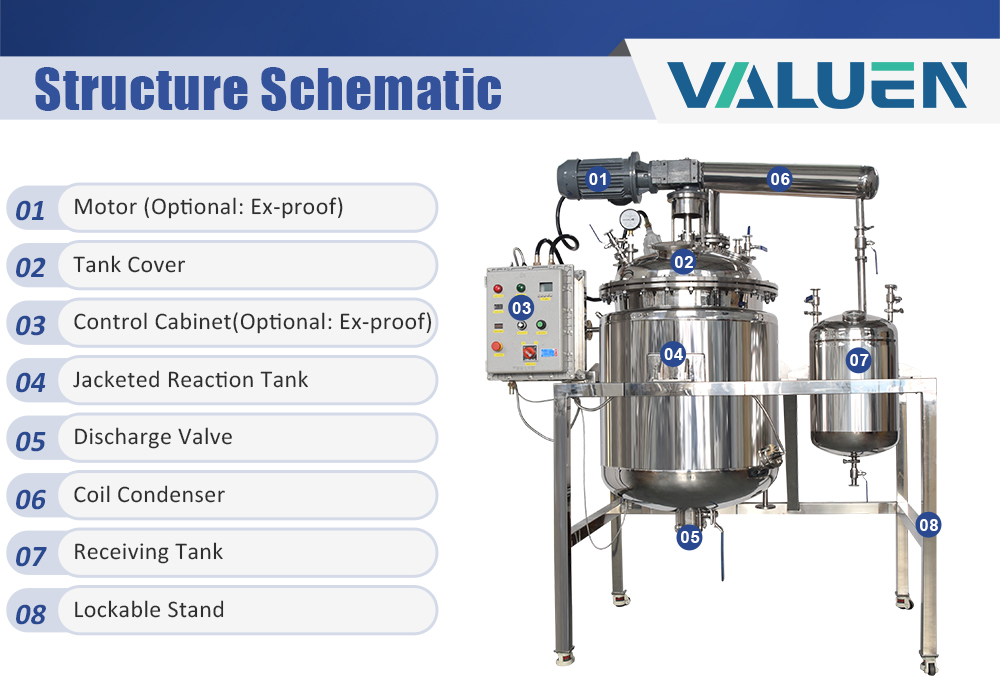

Product Details

High Quality Stainless Steel

Contact parts of machine are completely made of food grade stainless steel 304/316L
Tank Cover

Sight window makes observation of reacting material easy; Ports and the caliber can be customized
Motor Device

Low noise, stable dynamic, sustainable work; Non-explosion proof or explosion proof can be tailored
SS Agitator

Agitator type and and layers (1/2/3 layers) can be tailored according to the viscosity of material
Discharge Valve

Easy to use; can achieve continuous receiving

Model	VJR 10S	VJR 20S	VJR 50S	VJR 100S	VJR 150S	VJR 200S	VJR 300S	VJR 500S	VJR 1000S
Reaction Tank Capacity	10L / 2.6Gal	20L / 5.28Gal	50L / 13.20Gal	100L / 26.4Gal	150L / 39.6Gal	200L / 52.8Gal	300L / 79.2Gal	500L / 132Gal	1000L/ 264Gal
Receiving Tank Capacity	5L / 1.32Gal	5L / 1.32Gal	10L / 2.6Gal	30L / 7.8Gal	50L / 13.20Gal	50L / 13.20Gal	100L / 26.41Gal	150L / 39.6Gal	250L/ 66.0Gal
Jacket Quantity	Single jacket or Dual jacket with inner heating jacket and outer insulation jacket (customizable)
Stainless Steel Material	Sanitary Grade 316 or 304 Stainles Steel
Heating Mode (Optional)	2 Options: Built-in electrical heating device or Circulation jacket with heating fluid
Cooling Mode (Optional)	2 Options: Internal cooling condensers or Ciruculation jacket with cooling fluid
Working Temperature Range	-80°C to 350°C
Rotary Speed	0-500RPM				0-150RPM				0-120RPM
Stirrer	316 Stainless Steel Stirrer (shape and layer quantities are customizable)
Stirring Motor Power	200W		370W	400W	750W	1100W		2000W	3000W
Heating Power if with Inner Electrical Heating Device (Optional)	3KW	3KW	6KW	12KW	18KW	27KW	27KW	30KW	Not recommended
Control Panel	Digital-display Stirring speed controller, Heating temperature controller if with internal electrical heating, and Main power switch
Power Supply	110V or 220V, 50/60Hz, Single Phase; 220V or 380V, 50/60HZ, 3 Phase
Vacuum Level	Under 0.098Mpa
Condensation Area	0.5㎡		1.0㎡	1.5㎡	2.0㎡	2.0㎡	3.0㎡	4㎡	4 ㎡
Ports on Lid	6 Ports: Stirring port, Air inlet port, Liquid inlet port, Thermowell port, Vacuum gauge port and Condenser port (Customizable)
