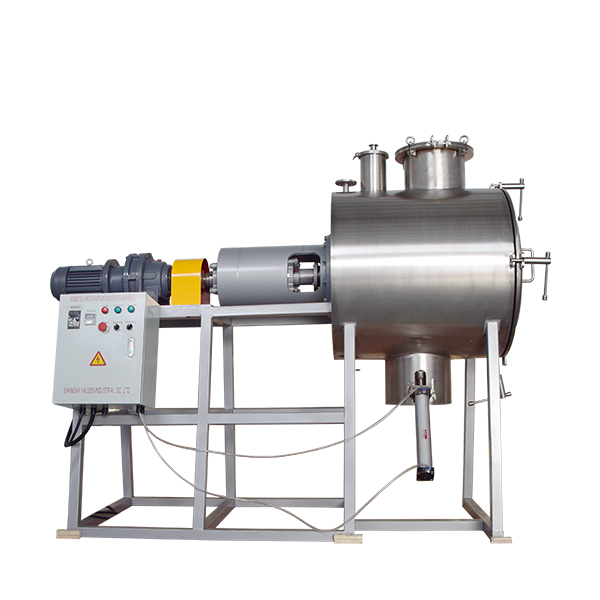

300L Combo Jacketed Vacuum Drying & Mixing Equipment/ Vacuum Harrow Dryer

Combo Mixing & Drying Equipment is a multifunctional machine designed to perform both mixing and drying operations within a single unit. This equipment is widely used in industries such as pharmaceuticals, chemicals, food, and cosmetics. It streamlines production processes by combining two critical operations, thereby saving time, space, and energy.

Adopting a Large-Area Jacket Heating Method, It Offers a Large Heat Transfer Surface And High Thermal Efficiency.
Using Packing Seals And Mechanical Seals Ensure Good Sealing Performance And Extended Service Life.
Harrow Stirrer Continuously Mix The Material, Ensuring Uniform Heating And Preventing Overheating Or Agglomeration, Making It Suitable For Drying Slurry, Paste, And Dough-Like Materials.
Equipped With Condenser Or Cold Trap, Solvents Can Be Recovered Simultaneously During The Drying Process.


Availability:



Inquiry

Model:
VPG500

Product Description

Product Parameter

Product Details

About US

Adopting a Large-Area Jacket Heating Method, It Offers a Large Heat Transfer Surface And High Thermal Efficiency.

Using Packing Seals And Mechanical Seals Ensure Good Sealing Performance And Extended Service Life.

Harrow Stirrer Continuously Mix The Material, Ensuring Uniform Heating And Preventing Overheating Or Agglomeration, Making It Suitable For Drying Slurry, Paste, And Dough-Like Materials.

Equipped With Condenser Or Cold Trap, Solvents Can Be Recovered Simultaneously During The Drying Process.

vacuum-harrow-dryer_01

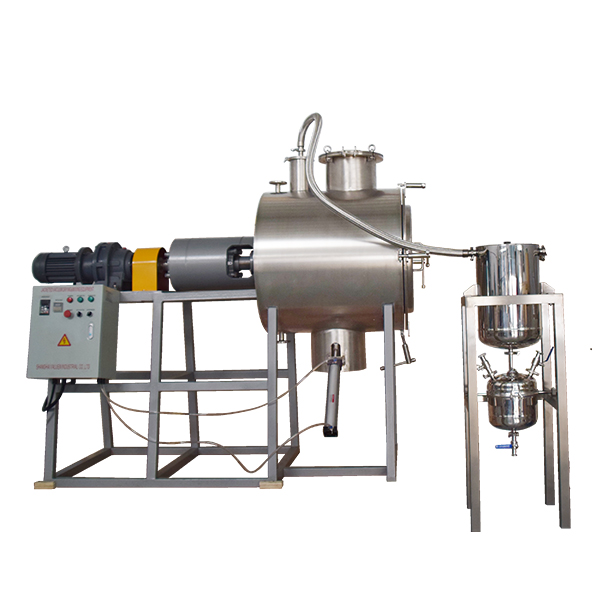

vacuum-harrow-dryer_02

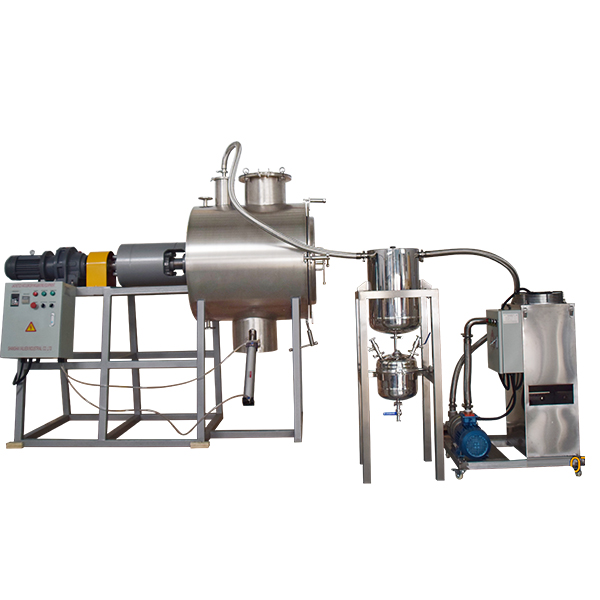

vacuum-harrow-dryer_03

vacuum-harrow-dryer_04

vacuum-harrow-dryer_06

vacuum-harrow-dryer_07

vacuum-harrow-dryer_08

Model	VPG-500	VPG-750	VPG-1000	VPG-1500	VPG-2000	VPG-3000	VPG-4000	VPG-5000	VPG-6000
Working Volume(L)	300	450	600	900	1200	1800	2400	3000	3600
Heating Area(m²)	3.2	4.4	5.1	6.3	8.1	10.6	12.3	14.2	16.5
Stirring Speed	8~18rpm
Power(KW)	4	5.5	5.5	7.5	7.5	11	15	18.5	22
Jacket Design Pressure	0.3Mpa
Cylinder Pressure	-0.096~0.15Mpa

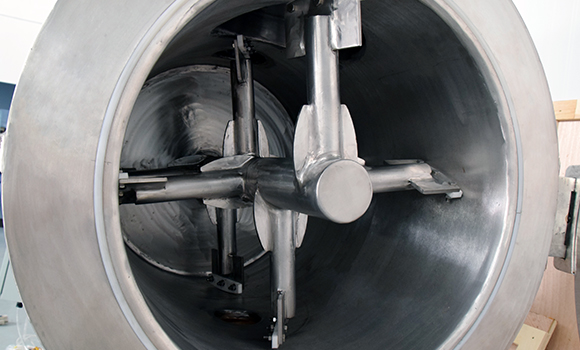

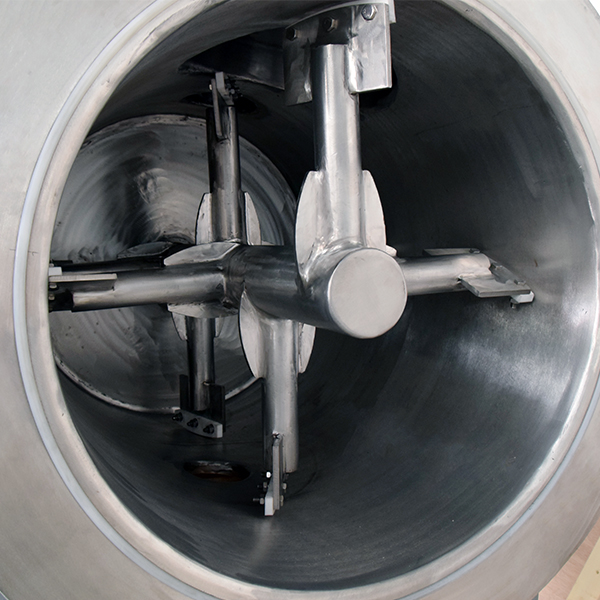

Harrow Stirrer

The equipment is equipped with a harrow stirrer to form a continuous cycle of materials, further improving the uniformity of material heating.

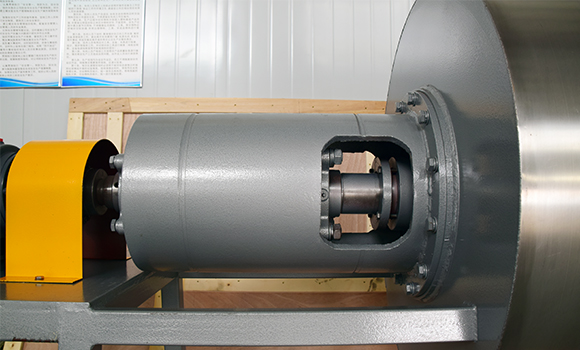

High Sealing Performance

Utilizing packing sealing and mechanical sealing, the equipment achieves excellent sealing performance, preventing contamination or leakage of materials during the drying process.

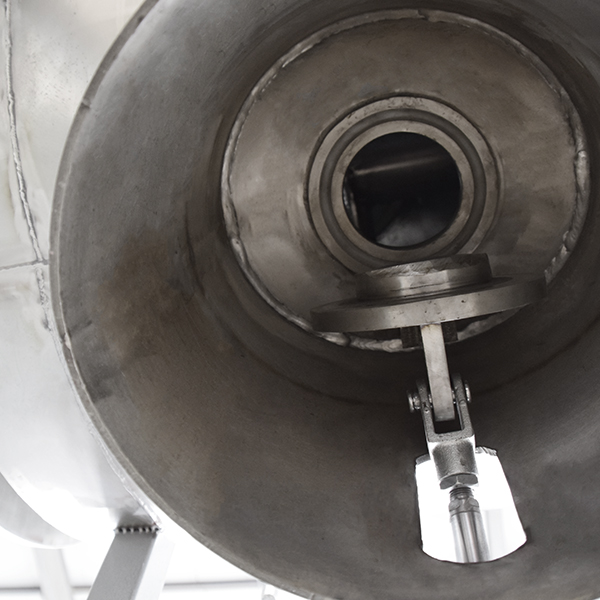

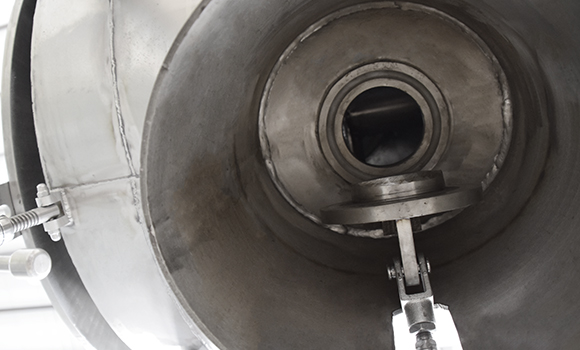

Convenient Discharging

It features automatic and complete discharging by pneumatic control , ensuring efficient and clean unloading of various material types, while maintaining excellent sealing to prevent contamination.

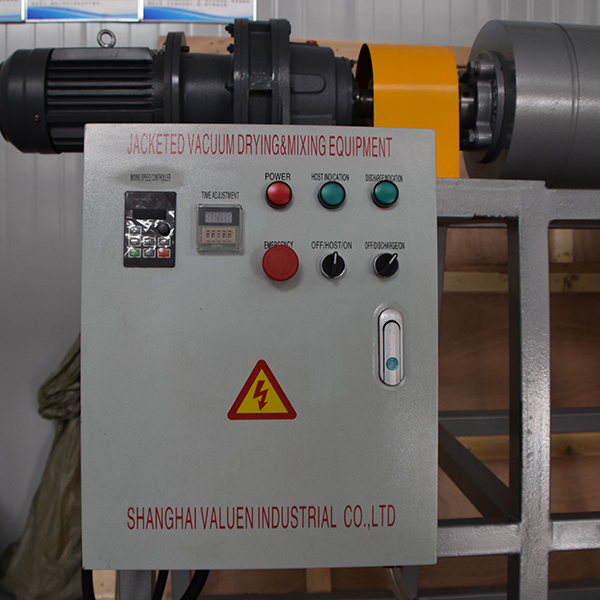

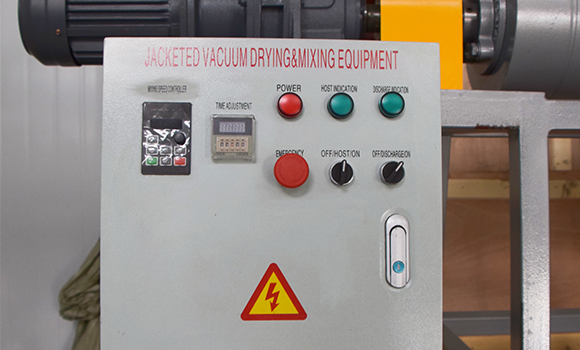

User-friendly Controller

The control cabinet offers precise control of stirring speed, time adjustment, discharging and power, allowing for easy operation and monitoring.
