-25℃~200℃ Heating And Cooling Circulator/ Compound Heater And Chiller

Application:

The heating and cooling circulator is a type of multifunctional device which owns both heating and cooling function to provide constant temperature for chemical experiment. This machine has been widely used in medical, chemical and biological industries. It can provide cooling or heating to equipment as below:

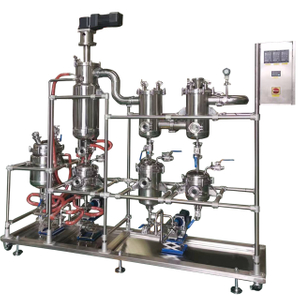

Evaporators (Wiped Film Evaporator)
Distillation Equipment ( Wiped Film Distillation and Other Vacuum Distillation Equipment)
Reactors (Glass and Stainless Reactor
Jacketed Tanks

Features:

Integrates Both Heating and Cooling Functions Via Using One Type Of Thermal Oil
High Quality Imported Compressor, Circulation Pumps and Heating Parts For High Reliability And Efficiency
Digital Setting And Display Of Temperature For Easy Operation
Low Noise And Stable Constant Running With Low Maintenance Rates
Built-in Oil Tank For Higher Security Level
Accurate Temperature Control to Provide A Constant Temperature


Availability:



Inquiry Email

Model:
VHC-50
Brand:
Valuen

Product Overview

Product Parameter

About US

This compound heater chiller has two systems: cooling system and heating system. These two cooling system and heating system can work together or independently.

Integrates Both Heating and Cooling Functions Via Using One Type Of Thermal Oil
High Quality Imported Compressor, Circulation Pumps and Heating Parts For High Reliability And Efficiency
Digital Setting And Display Of Temperature For Easy Operation
Low Noise And Stable Constant Running With Low Maintenance Rates
Built-in Oil Tank For Higher Security Level
Accurate Temperature Control to Provide A Constant Temperature

circulating heater&chiller

Model		VHC-25	VHC-35	VHC-50	VHC-70	VHC-100	VHC-150
Temperature range		-25℃~200℃
Controller		PID adaptive controller
Temp. control		Heat-conducting medium outlet temp. control
Temperature feedback		Heat-conducting medium temperature feedback PT100
Refrigerant		R-404A
Temp. accuracy		±0.5℃
Heating power		2.5KW	3.5KW	5.5KW	7KW	10KW	15KW
Cooling Capacity	200℃	2.5KW	3.5KW	5.5KW	7KW	10KW	15KW
	100℃	2.5KW	3.5KW	5.5KW	7KW	10KW	15KW
	20℃	2.5KW	3.5KW	5.5KW	7KW	10KW	15KW
	-5℃	2KW	3KW	4.5KW	6.6KW	8KW	12KW
	-20℃	1KW	1.8KW	2.8KW	3.8KW	4.6KW	7KW
Circulation Pump Rate		Max25L/min	Max35L/min	Max35L/min	Max35L/min	Max50L/min	Max110L/min
Compressor		Copeland	Copeland	Copeland	Copeland	Copeland	Copeland
Interface Size		DN15	DN20	DN20	DN20	DN20	DN20
Power Supply		AC 220V 50/60 HZ	AC 380V 50HZ	AC 380V 50HZ	AC 380V 50HZ	AC 380V 50HZ	AC 380V 50HZ
Power Supply		4kW (max)	6kW (max)	8kW (max)	11kW (max)	14kW (max)	21kW (max)
Optional Power Supply		220V 60HZ three-phase, 440V~480V 60HZ three-phase
Shell Material		Cold rolled plate with plating (Optional: Stainless Steel)
