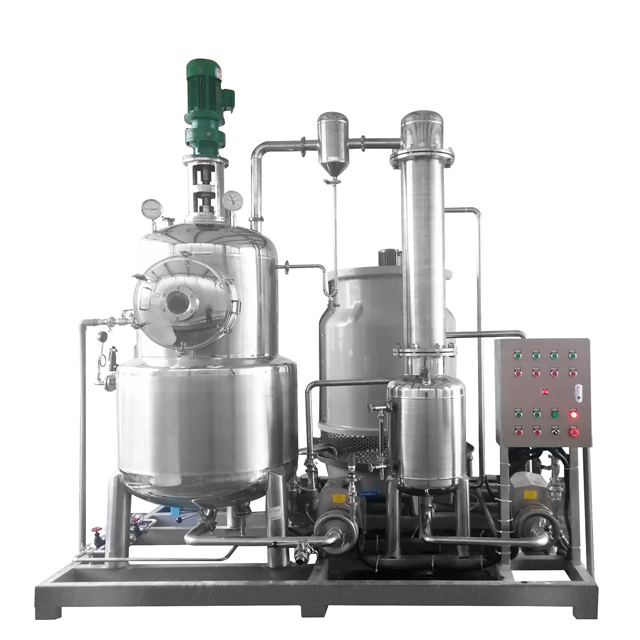

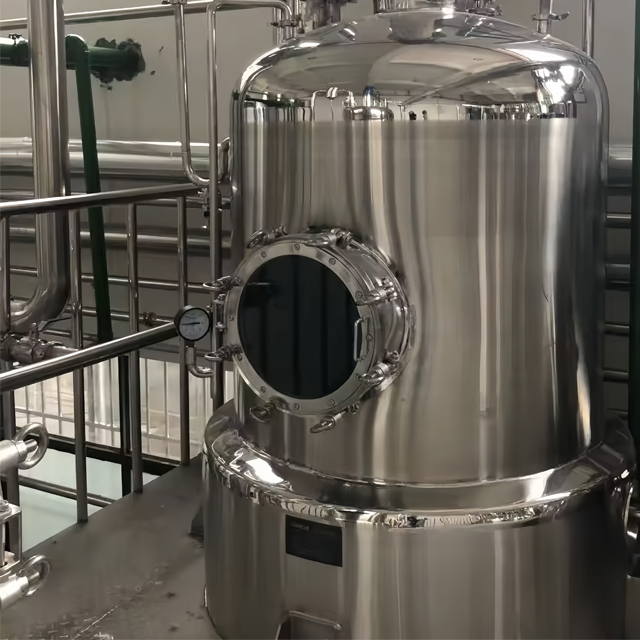

200L Stainless Steel Tank Vacuum Concentrator

Tank vacuum concentrator is widely used in pharmaceutical, chemical, food and other ericalindustries for concentrating various solutions, such as traditional Chinese medicine extracts, chemical raw materials, food additives and so on.

High Concentration Rate: the spherical structure can make the solution and the heating surface fully contact, improve the heat transfer efficiency, thus improving the concentration efficiency
Convenient Operation: the spherical vacuum concentrator adopts automatic control system, which is simple and convenient to operate
Wide Range of Application: the spherical vacuum concentrator can concentrate various types of solutions with strong adaptability.
Dual Jacketed Sanitary Grade Stainless Steel 100L/200L/300L Ball-Shape Vacuum Concentrator/Evaporator/Solvent Concentration Equipment
Electropolished Internal Tank, Fit For Standard Of Food And Pharmaceutical Industries
Low Maintenance Rate, Made of Sanitary Grade Durable SS304 &316L and Anti-Corrosive Sealing Parts


Availability:



Inquiry Email

Model:
VRE200
Brand:
Valuen

Product Overview

Product Details

Product Parameter

About US

200 L Multifunctional Sanitary Grade Stainless Steel Ball Shape Vacuum Concentrator

Herbal Extraction, Distillation, Concentration (Solvent Recovery), Crystallization, Synthesis, Decarboxylation

tank vacuum concentrator

Product Details

Model	VRE50	VRE100	VRE150	VRE200	VRE300	VRE500
Evaporation Tank Capacity	50L / 13.20Gal	100L / 26.4Gal	150L / 39.6Gal	200L / 52.8Gal	300L / 79.2Gal	500L / 132Gal
Receiving Tank Capacity	10L / 2.6 Gal	30L / 7.8Gal	50L / 13.20Gal	50L / 13.20Gal	100L / 26.41Gal	150L / 39.6Gal
Jacket Quantity	Dual jackets with inner heating jacket and outer insulation jacket
Stainless Steel Material	Wet parts: Sanitary Grade 316 Stainles Steel; Outernal parts and Frame:Sanitary Grade 304 Stainless Steel (customizable)
Heating Mode (Optional)	2 Options: Built-in electrical heating device or Circulation jacket with heating fluid or steam
Working Temperature Range	-80°C to 250°C / -112°F to 482°F

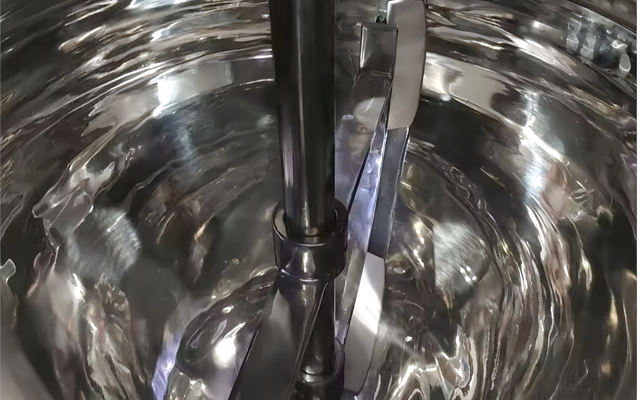

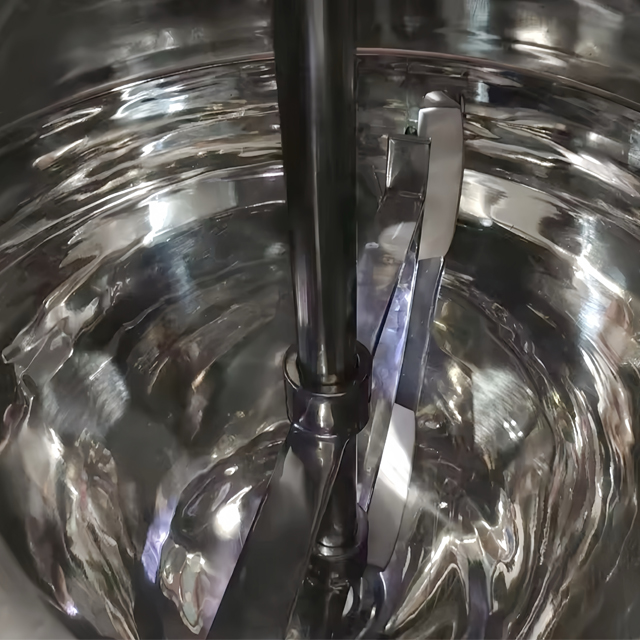

Stirrer	316 Stainless Steel Stirrer (shape and layer quantities are customizable)

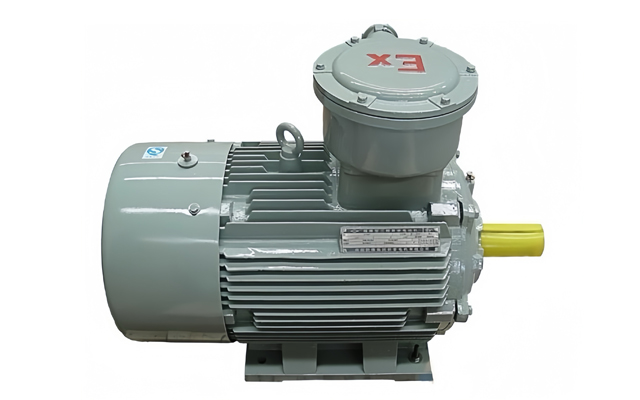

Stirring Motor Power	370W	400W	750W	1500W	2000W
Heating Power if with inner electrical heating device (Optional)	6KW	12KW	18KW	27KW	27KW	30KW

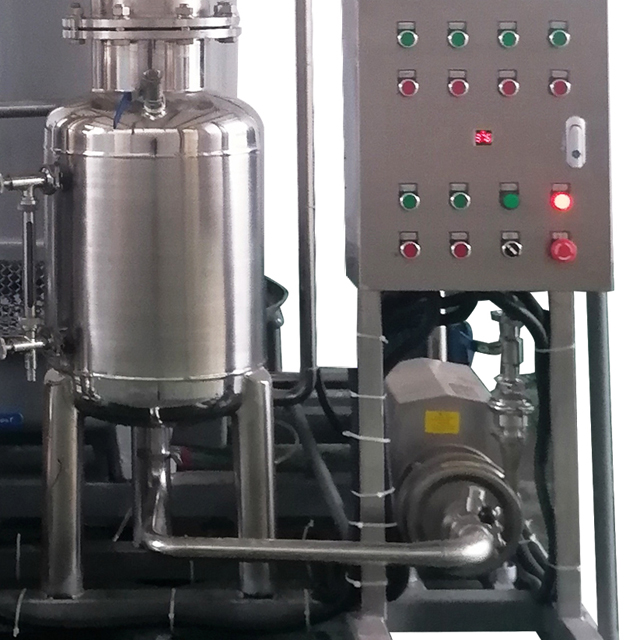

Control Panel	Digital-display Stirring speed controller, Heating temperature controller if with internal electrical heating, and Main power switch (customizable)
Power Supply	220V, 50/60Hz, Single Phase; 220V or 380V, 50/60HZ, 3 Phase
Condensation Area	1.0㎡	1.5㎡	2.0㎡	2.5㎡	3.0㎡	4㎡
